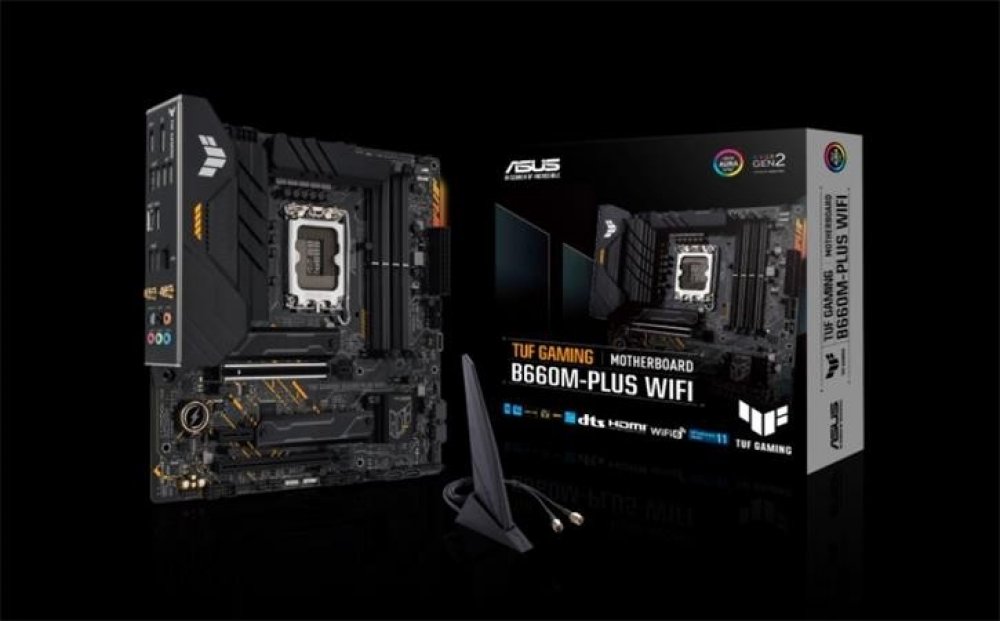

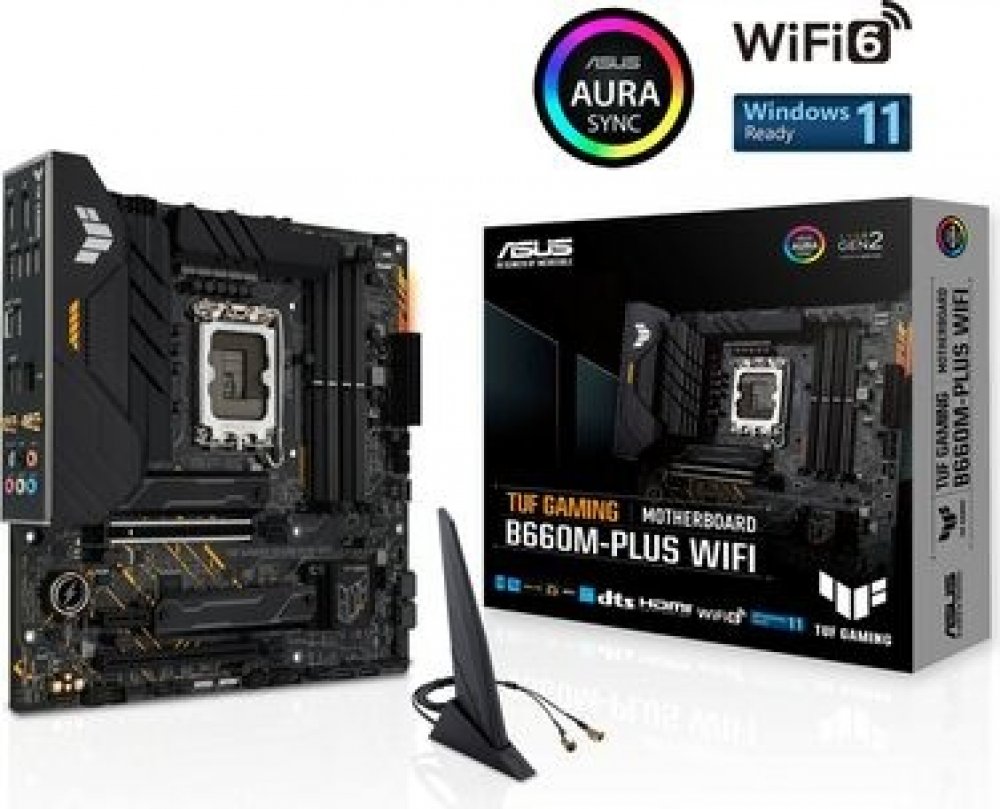

Asus TUF GAMING B660M-PLUS WIFI 90MB1AZ0-M0EAY0

Socket 1700 Asus Intel B660 micro ATX (mATX) Intel jako herní PC pro vyvážený výkon pro běžnou zátěž pro pokročilé 128 GB 4 DDR5 6000 MHz 4 6 0 1 2 244 x 244 mm běžné RAID 0, RAID 1, RAID 5, RAID 10 DisplayPort 1.4 HDMI 2.1 1 Bluetooth 5.2 LAN 2.5 Gb/s 1 2.0 1.0 1.0 4.0 1.0 6.0

Chipset: Intel B660 Chipset
Rozměrový formát: mATX Form Factor ( 24.4 cm x 24.4 cm )
Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: LGA 1700
Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti: DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: XMP
Grafická karta: (na základě procesoru)
*1 x DisplayPort
*1 x HDMI port
Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC
*optical S/PDIF out port
Síťová karta:
*1 x Realtek 2.5Gb Ethernet
*Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
*Bluetooth v5.2
Rozšiřující sloty:
*1 x PCIe 5.0 x16 slot
*1 x PCIe 3.0 x16 slot (supports x4 mode)
*1 x PCIe 4.0 x1 slot
RAID řadič: RAID 0/1/5/10
SATA: 4 x SATA 6Gb/s ports
M.2: 2 x M.2 slots (Key M)
USB:
*Interní:
*1 x USB 3.2 Gen 1 connector (supports USB Type-C)
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
*Externí:
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*4 x USB 3.2 Gen 2 ports (4 x Type-A)
*1 x USB 3.2 Gen 1 port (1 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
Interní porty:
*Fan and Cooling related
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*3 x 4-pin Chassis Fan headers
*Power related
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
*1 x 4-pin +12V Power connector
*Storage related
*2 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
*USB
*1 x USB 3.2 Gen 1 connector (supports USB Type-C)
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
*Miscellaneous
*3 x Addressable Gen 2 headers
*1 x AURA RGB header
*1 x Clear CMOS header
*1 x COM Port header
*1 x Front Panel Audio header (AAFP)
*1 x 20-3 pin System Panel header with Chassis intrude function
*1 x Thunderbolt header
Externí porty:
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*4 x USB 3.2 Gen 2 ports (4 x Type-A)
*1 x USB 3.2 Gen 1 port (1 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
*1 x DisplayPort
*1 x HDMI port
*1 x Wi-Fi Module
*1 x Realtek 2.5Gb Ethernet port
*5 x Audio jacks
*1 x Optical S/PDIF out port
BIOS: UEFI AMI BIOS, 128 Mb Flash ROM
