Asus TUF GAMING B450M-PLUS II 90MB1620-M0EAY0

Socket (patice):Socket AM4; Formát:micro ATX; Integrovaná grafická karta:Ano (CPU); Chipset:AMD; Technologie paměti RAM:DDR4; Podpora RAID:1, 10; PCI express 16x:1; Integrovaná LAN karta:1; Rozhraní:HDMI, USB 2.0, USB 3.2, 3.5mm Jack, LAN (RJ-45), DisplayPort, USB Type-C

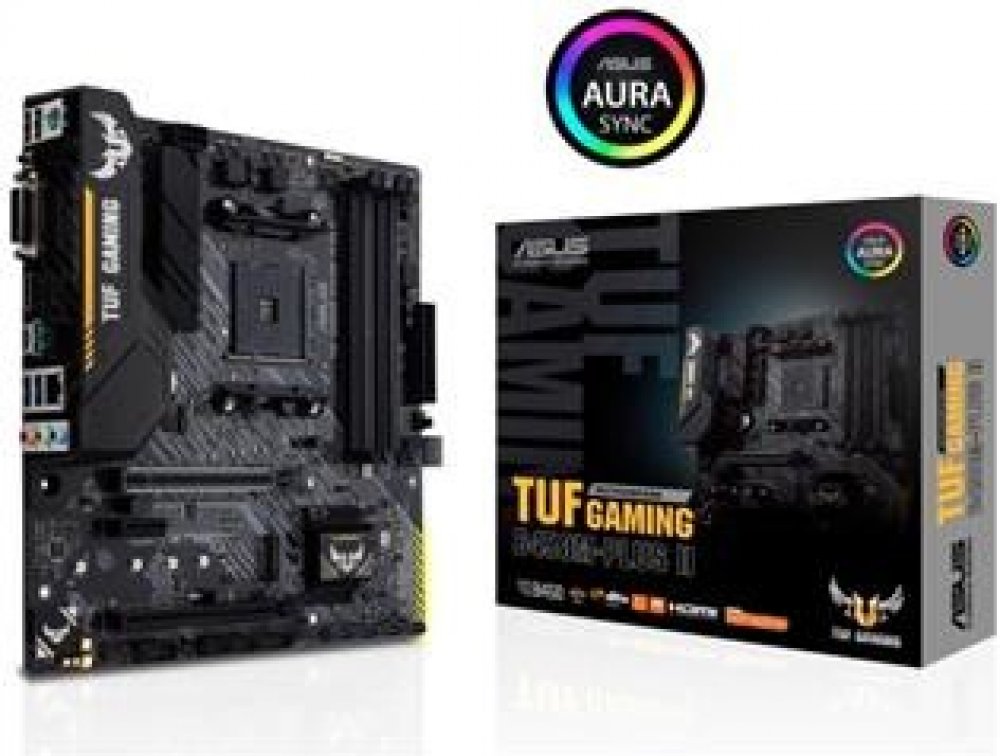

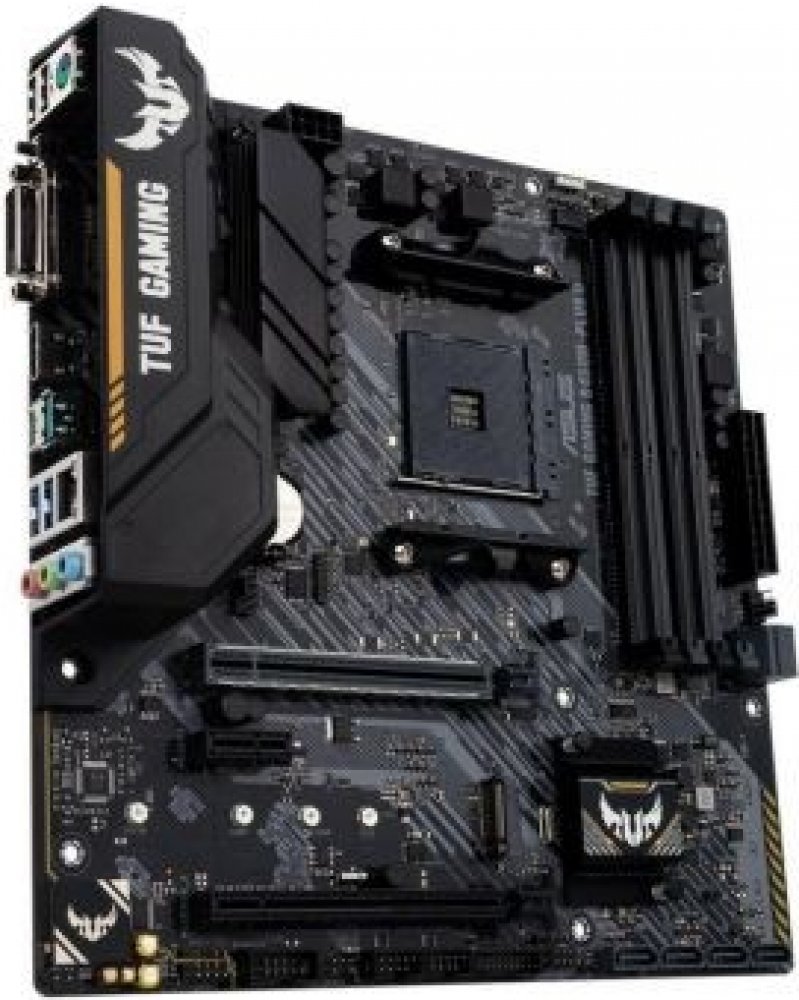

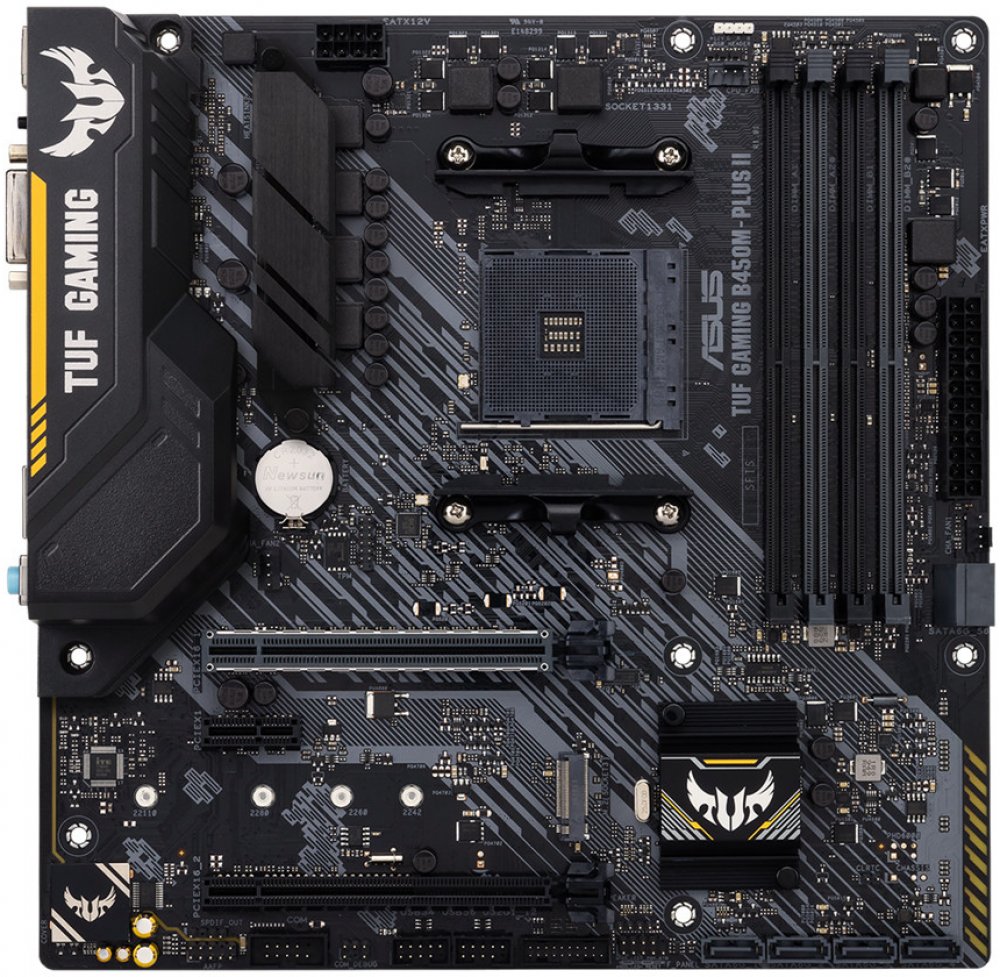

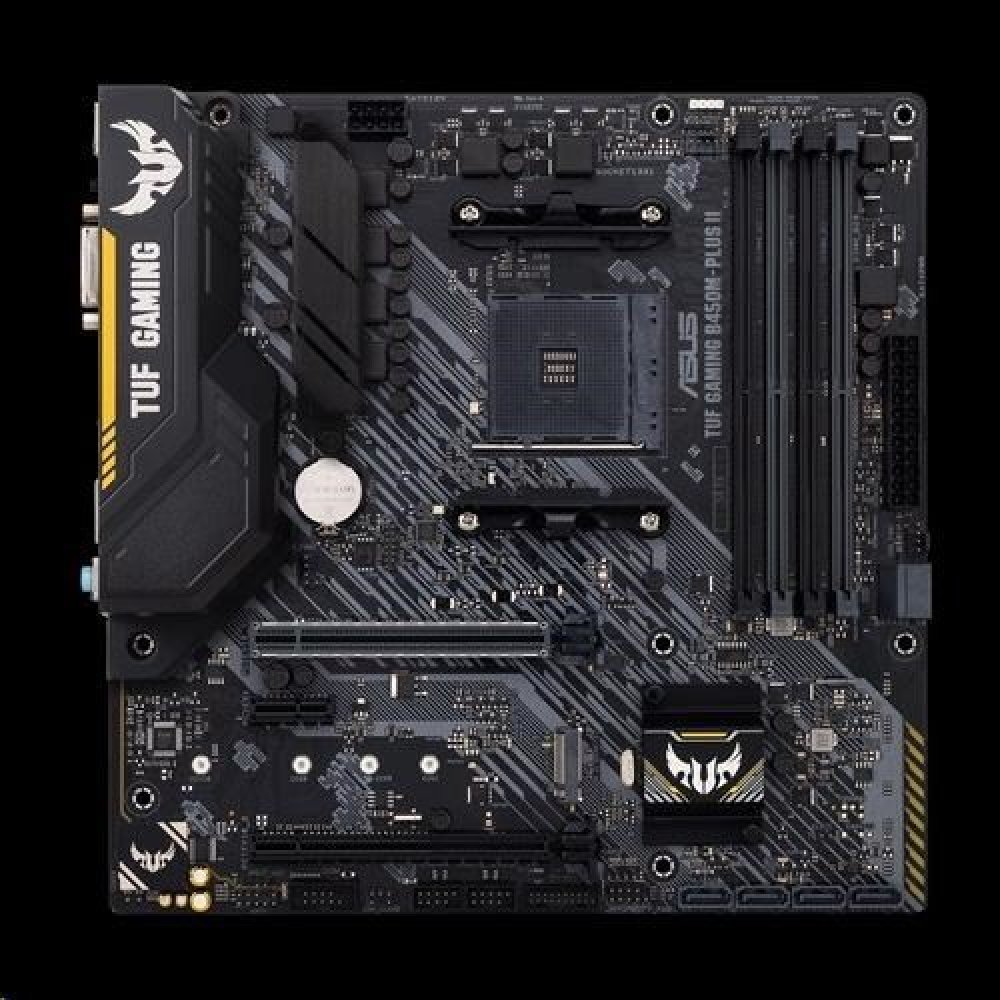

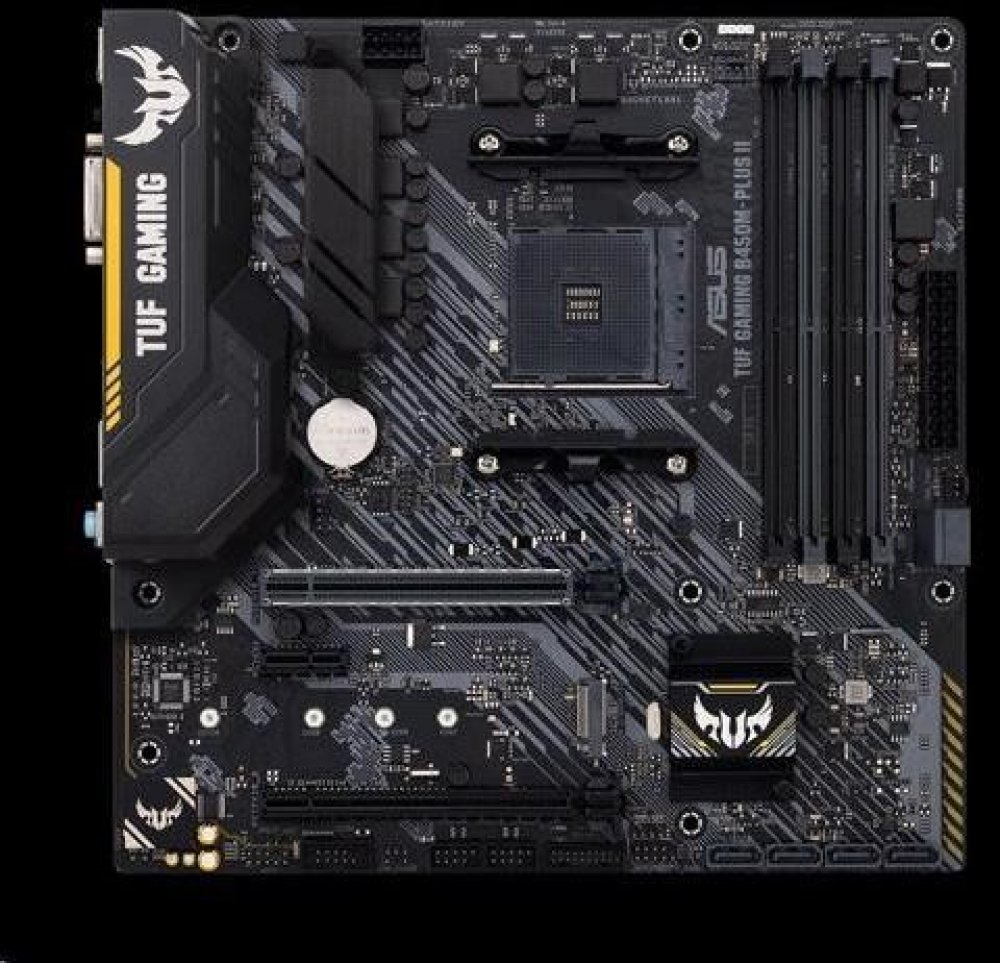

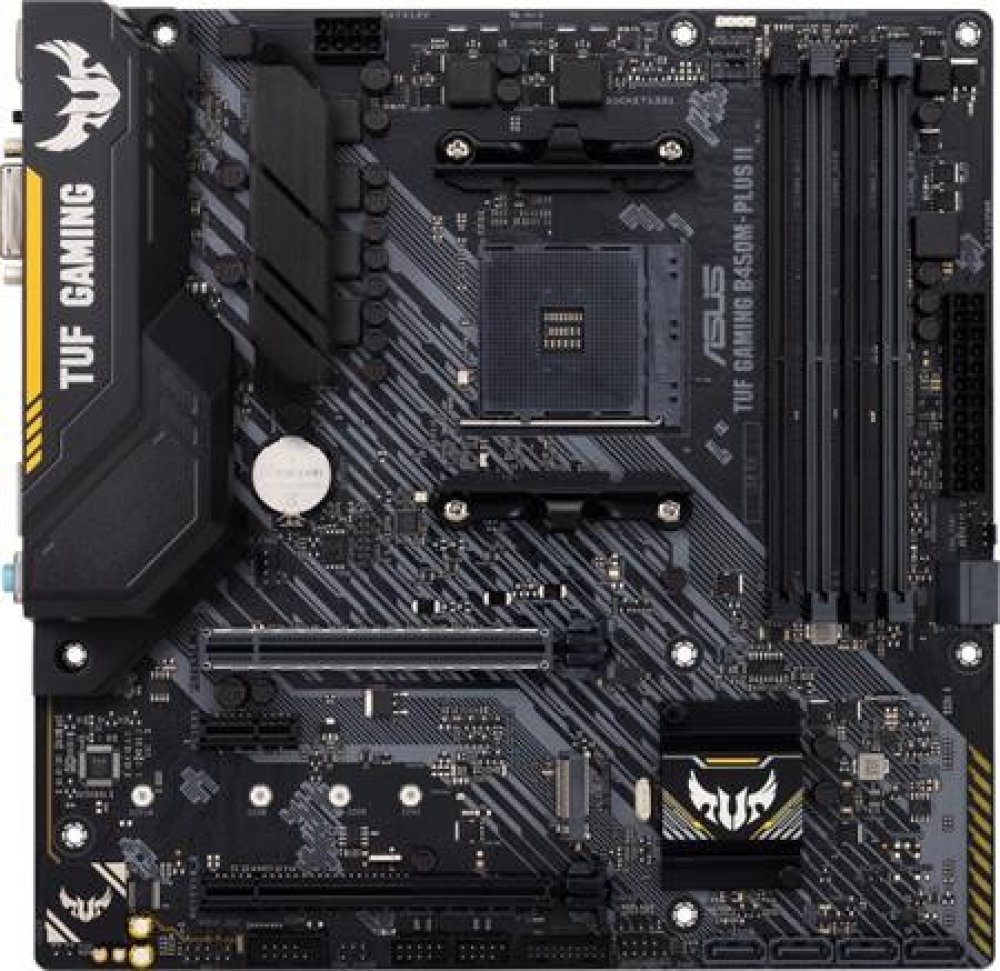

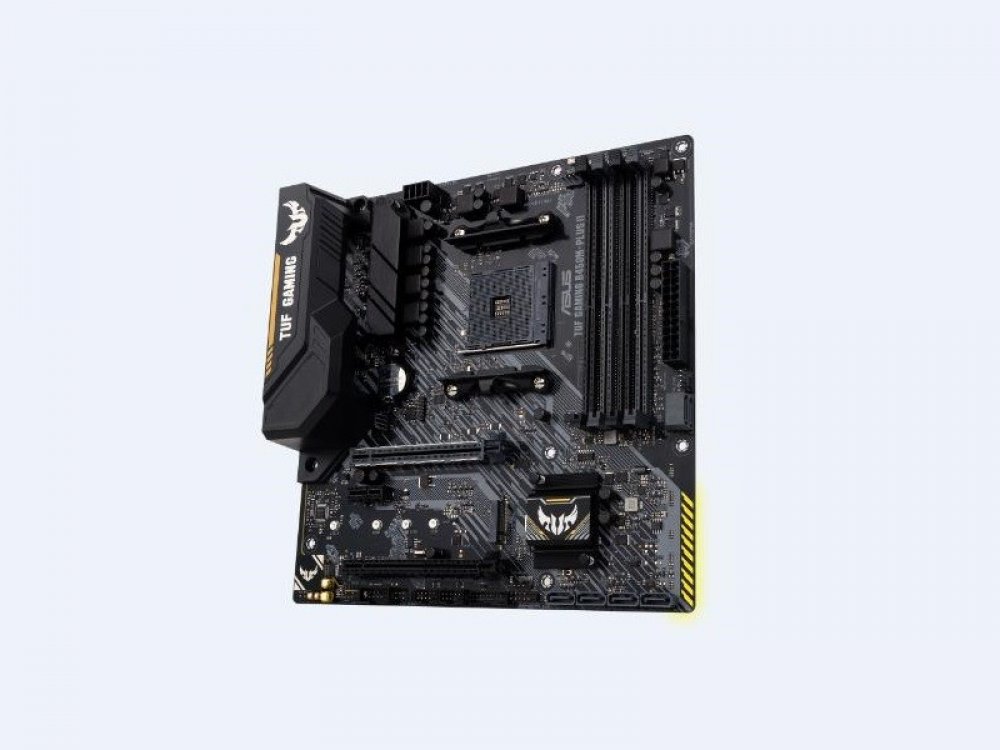

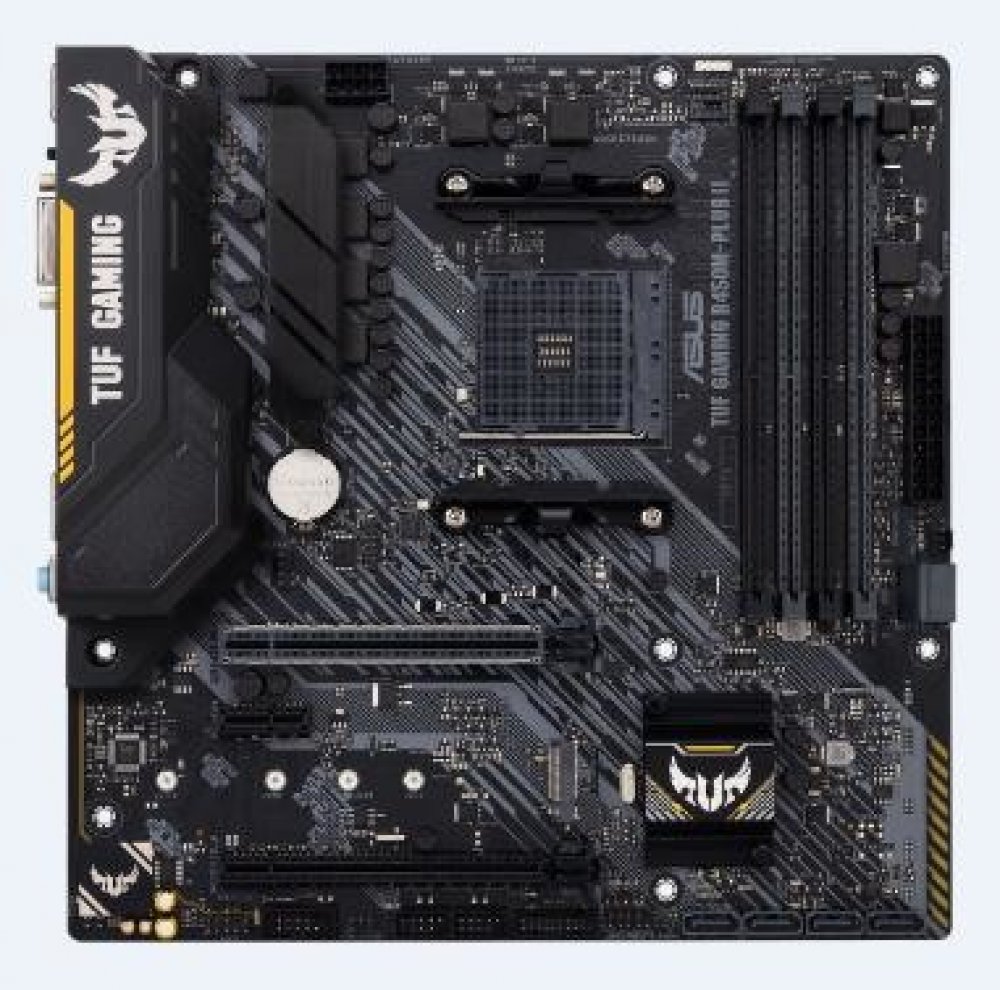

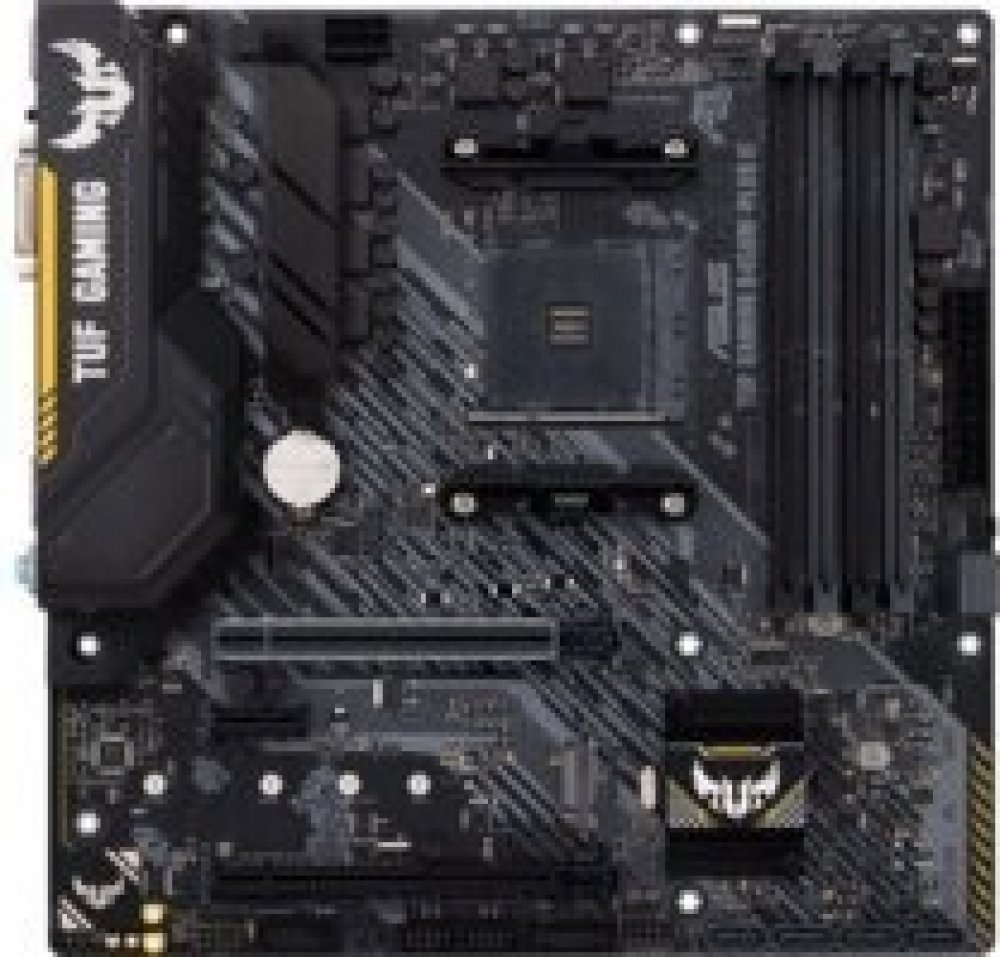

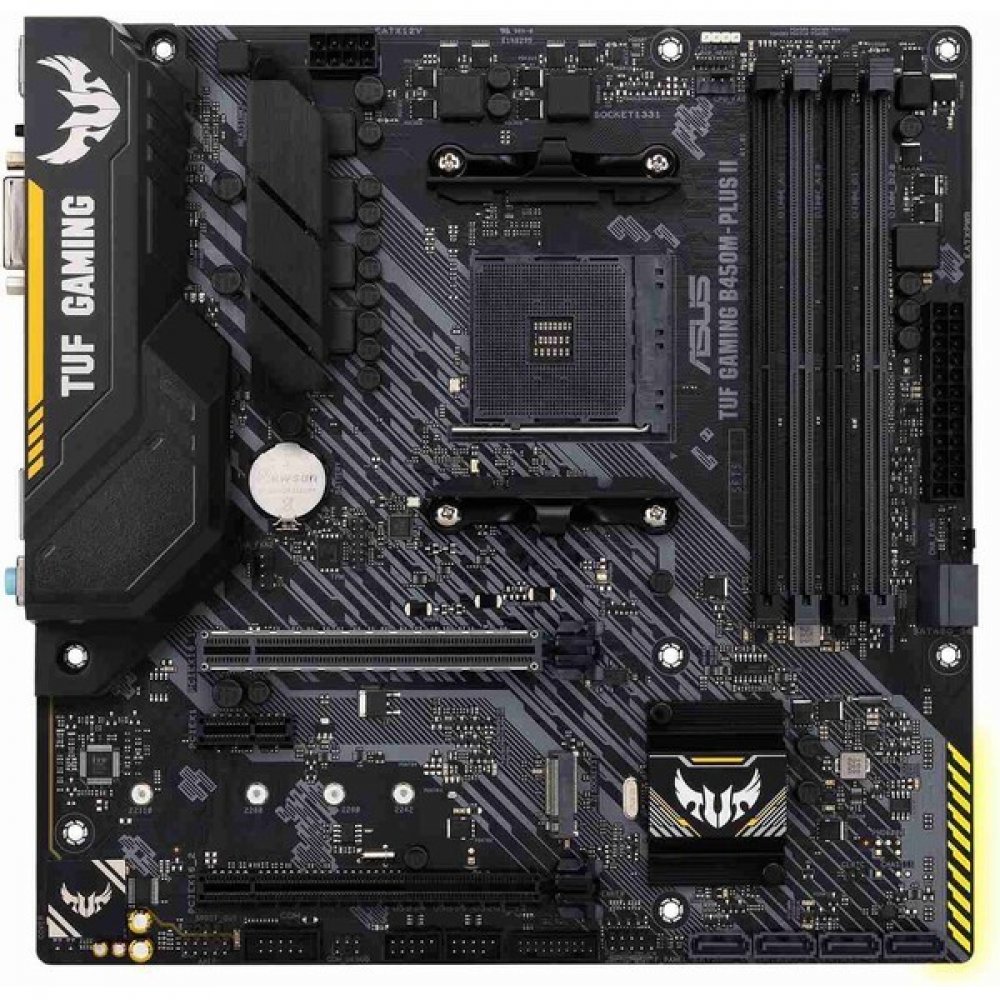

TUF GAMING B450M-PLUS II
AMD B450 (AM4) micro ATX gaming motherboard with M.2 support, AI Noise-Canceling Microphone, HDMI, DVI-D, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-A and Type-C, Aura Sync RGB lighting support
- Comprehensive cooling: VRM heatsink, PCH heatsink, Fan Xpert 2+
- Next-gen connectivity: USB 3.2 Gen 2 Type-A support
- AI Noise-Canceling Microphone: Provides crystal-clear in-game voice communication
- Aura Sync RGB Lighting: Synchronize LED lighting with a vast portfolio of compatible PC gear
TECHNICAL SPECIFICATIONS
CPUAMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors *
* Refer to www.asus.com for CPU support listChipsetAMD B450Memory3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.GraphicIntegrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
1 x HDMI 2.0b
1 x DVI-D
*Graphics specifications may vary between CPU types.Multi-GPU SupportSupports AMD 2-Way CrossFireX TechnologyExpansion Slots3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (max at x4 mode)AMD B450 chipset
1 x PCIe 2.0 x16 (x4 mode)
1 x PCIe 2.0 x1StorageTotal supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics:
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support*1Athlon™ with Radeon™ Vega Graphics Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*13rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors:
2 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10AMD B450 chipset:
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10LANRealtek RTL8111H 1Gb Ethernet
TUF LANGuardAudioRealtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature:
- Exclusive DTS Custom for GAMING Headsets.
- Audio cover
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitorsUSB PortsRear USB Port (Total 6)
1 x USB 3.2 Gen 2 port(s)(1 x Type-A)
3 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C)
2 x USB 2.0 port(s)(2 x Type-A)Front USB Port (Total 6)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A) Software FeaturesASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- AI Noise-Canceling Microphone
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
- PC Cleaner
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ ModeASUS Special FeaturesASUS TUF PROTECTION
- ASUS DIGI+ VRM
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
AURA Sync
- AURA RGB headerBack I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.2 Gen 2 (teal blue)Type-A,
2 x USB 3.2 Gen 1 (blue) Type-A
1 x USB 3.2 Gen 1 (black) Type-C
2 x USB 2.0
3 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)Internal I/O Ports1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x Aura RGB Strip Header
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connectorAccessoriesUser´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
1 x M.2 SSD screw package(s)BIOS256 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PXEOperating SystemWindows 10 64-bit
Windows 7 64-bit *2Form FactormATX Form Factor
9.6 x 9.6 inch (24.4 x 24.4 cm)Note*1 The M.2 slot shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.
*2 To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.
