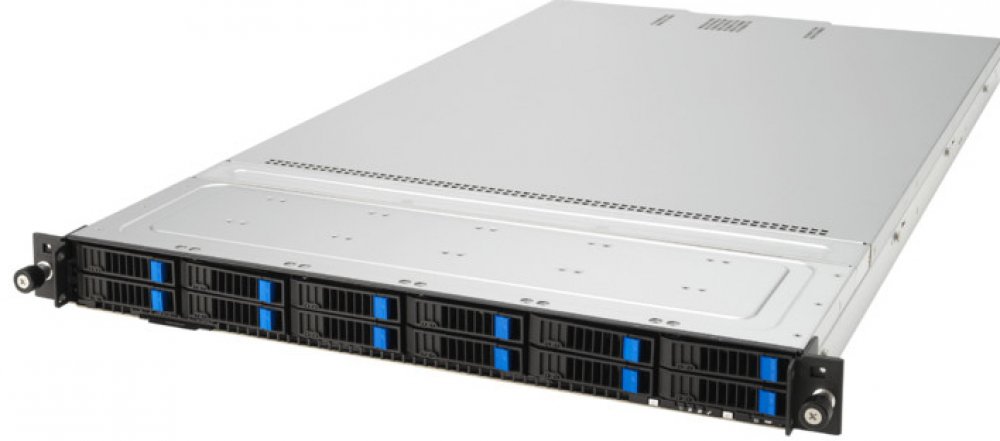

Asus RS700A-E12-RS12U 90SF02D1-M001A0

CPU
Platform
CPU
Scoket
CPU #
U
Max
CPU TDP
Chipset
Memory
Type
Memory
#
Storage
#
Storage
Bay
Storage
Type
NVMe grade
(option)
Storage
Hotswap
SAS
Controller
M.2
Other
Storage
ODD
O/B NIC
GPU
Sport
PCIe
#
PCIe slots
OCP
PSU
#
Railkit
PSU
Type
Heatsink
Type
Depth
(mm)
EPYC
Genoa
LGA6096
2
1U
400W
SOC
DDR5 4800
24
12
2.5"
SATA/SAS/12xNVMe
-
Y
Option
2
0
0
  Intel-i350 Based
1Gb x 4
-
2
1 x PCIe Gen4 x16, FHFL (CPU1)
1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2)
3.0X1
1+1
1000mm
Friction
2600W 80+ Titanium
1U EVAC HS
842.5 x 449 x 43.85
-
Processor / System Bus
2 x Socket SP5 (LGA 6096)
AMD EPYC™ 9004 Series
Max TDP : 400W
-
Generation
E12
-
Memory
Total Slots :
24 (12-channel per CPU, 1 DIMM per CPU)
Capacity :
Maximum up to 3072GB per socket
Memory Type :
DDR5 4800/4400 RDIMM/ 3DS RDIMM
Memory Size :
128GB, 64GB, 32GB RDIMM
128GB, 64GB, 32GB 3DS RDIMM
* Refer to www.asus.com/support for more information
-
Expansion Slots
Up to 3 x PCIe Gen5 slots + 1 x internal RAID slot
1 x PCIe Gen5 x16 (FHFL)
1 x PCIe Gen5 x16 or OCP3.0 (FHFL)
1 x PCIe Gen5 x16 (LP)
1 x PCIe Gen4 x8 (LP, internal)
*Installing GPU cards will occupied expansion slots.
*GPU SKU do not support OCP3.0.
-
Storage
SATA Controller :
8 x SATA 6Gb/s ports
2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link)
SAS Controller :
Braodcom HBA CARD 9500-16i (Optional)
Broadcom MegaRAID 9540-8i (Optional)
Broadcom MegaRAID 9560-16i (Optional)
-
Drive Bays
12 x 2.5" Hot-Swap drive bays
Support up to 12 x NVMe/SATA/SAS*
*RAID card is required to support SAS hard drives
-
System Fan
8
-
Networking
Option 1: 1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN
Option 2: 1 x Dual Port Intel X710-AT2 10G LAN Controller + 1 x Mgmt LAN
Option 3: None x + 1 x Mgmt LAN
-
Graphic
Aspeed AST2600 64MB
-
Multi-GPU Support
Please find the latest GPU support from https://servers.asus.com/support/gpu
-
Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Mgmt LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional)
1 x OCP3.0 port (Optional)
*GPU SKU do not support OCP3.0.
-
Switch/LED
Front Switch/LED:
1 x Power Switch (w/ LED)
1 x Reset Switch
1 x Location Switch (w/ LED)
1 x HDD Access LED
1 x Message LED
LAN 1-4 LED (on NIC module)
Rear Switch/LED:
1 x Port 80 LED (Q-Code)
1 x Power Switch w/ LED
1 x Location Switch w/LED
1 x Message LED
-
OS Support
Please find the latest OS support from https://servers.asus.com/support/os
-
Management Solution
On-Board ASMB11-iKVM for KVM-over-IP
ASUS Control Center Enterprise (Optional)
-
Regulatory Compliance
BSMI, CE, CB, C-Tick, FCC(Class A)
-
Dimensions
842.5mm x 449mm x 43.85mm (33.17" x 17.68" x 1.73")
-
Form Factor
1U
-
Weight
Net Weight : 14.94KG
Gross Weight : 19.94KG
-
Power Supply
1+1 Redundant 2000W/1600W 80 PLUS Platinum Power Supply
1+1 Redundant 2600W/1600W 80 PLUS Titanium Power Supply
Rating:
100-127/220-240Vac,12A/9.5A(x2),50/60Hz
100-127/240Vac,13.8A/16A(x2), 50/60Hz
220-240Vac, 10A(x2), 50/60Hz
-
Environment
Operation temperature: 10? ~ 35?
Non operation temperature: -40? ~ 60?
Non operation humidity: 20% ~ 90% (Non condensing)
-
Note
*SAS support only from SAS HBA/RAID Card
-
CPU Heatsink/ Cooler
2
-
Fan
1 (For supporting GPU SKU, it will have external fan)


- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.
- * Optional means “built for order”.

EAN: 4711387074008
