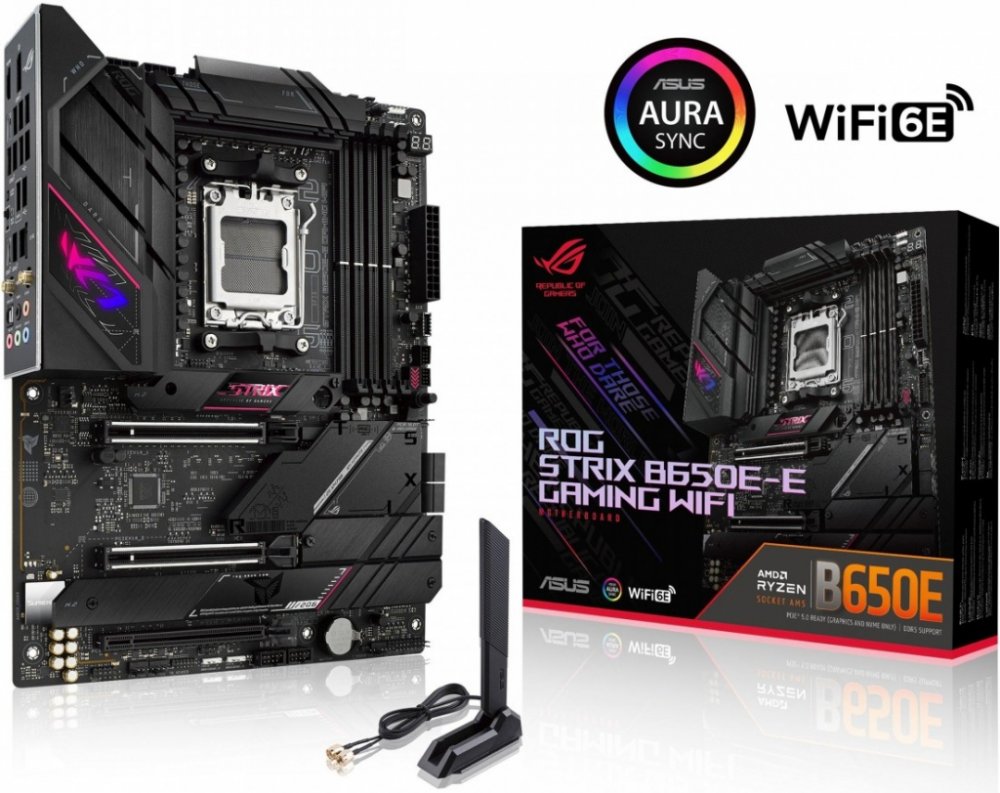

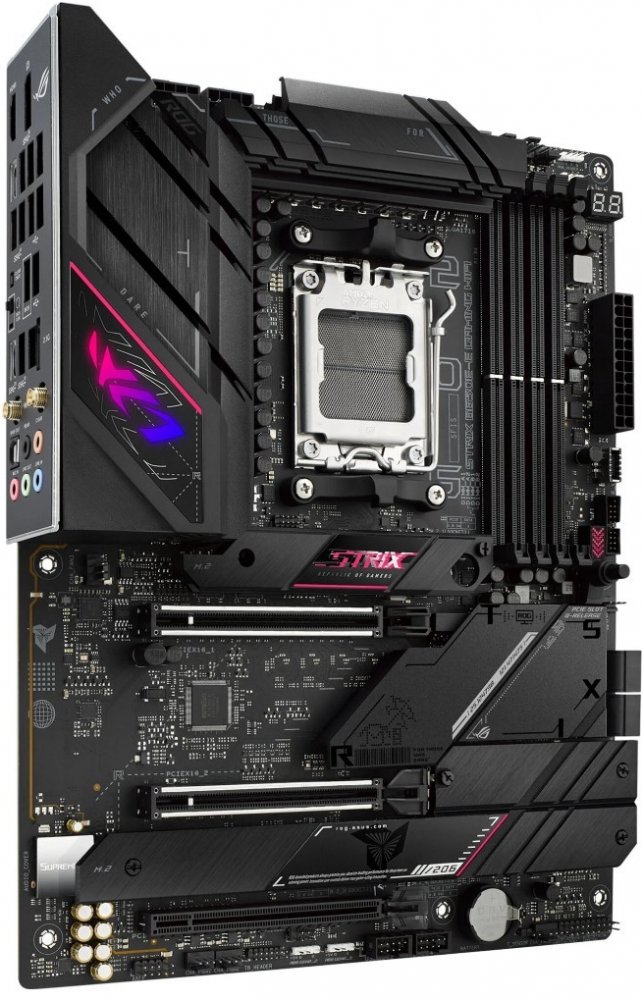

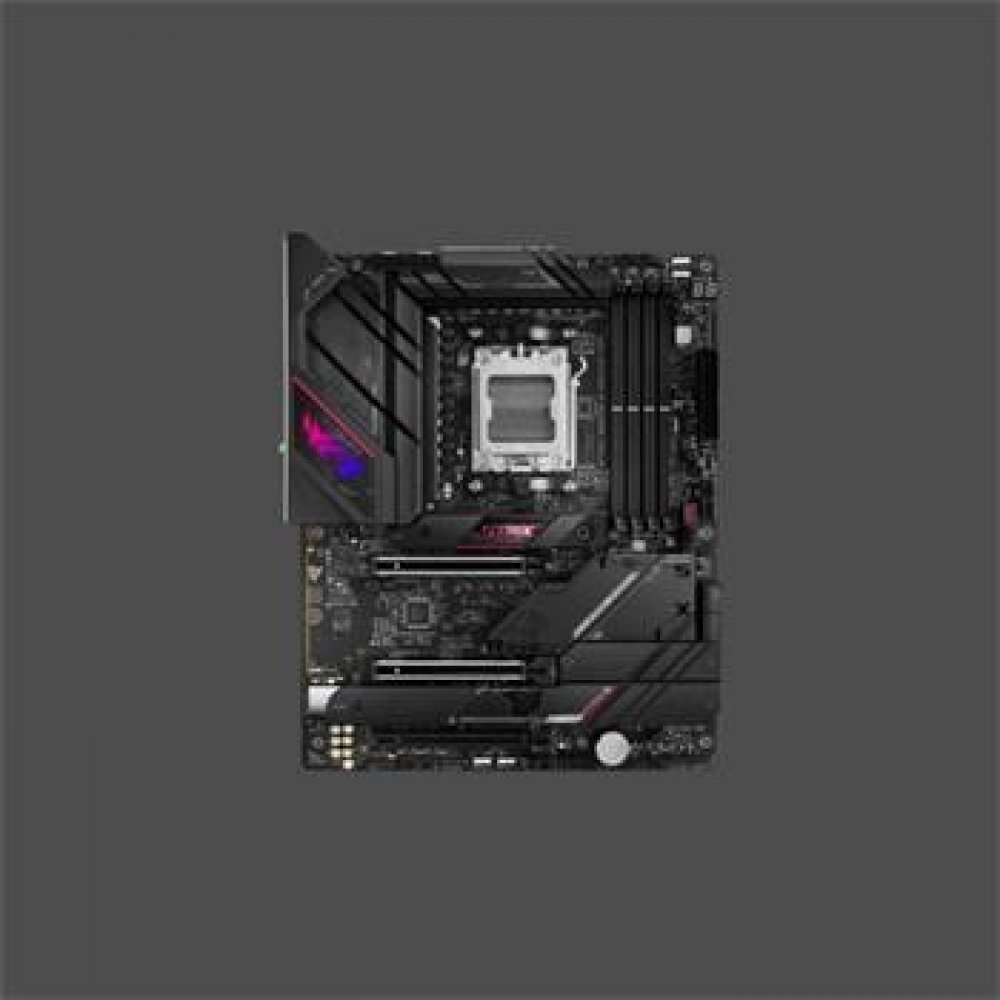

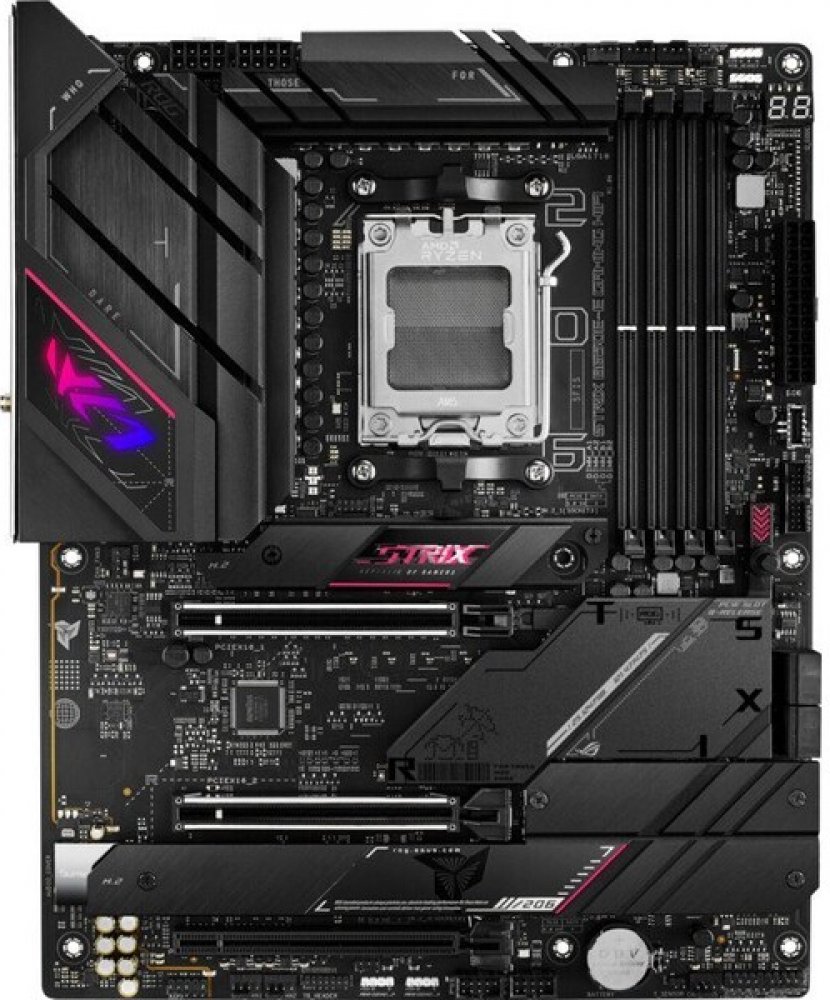

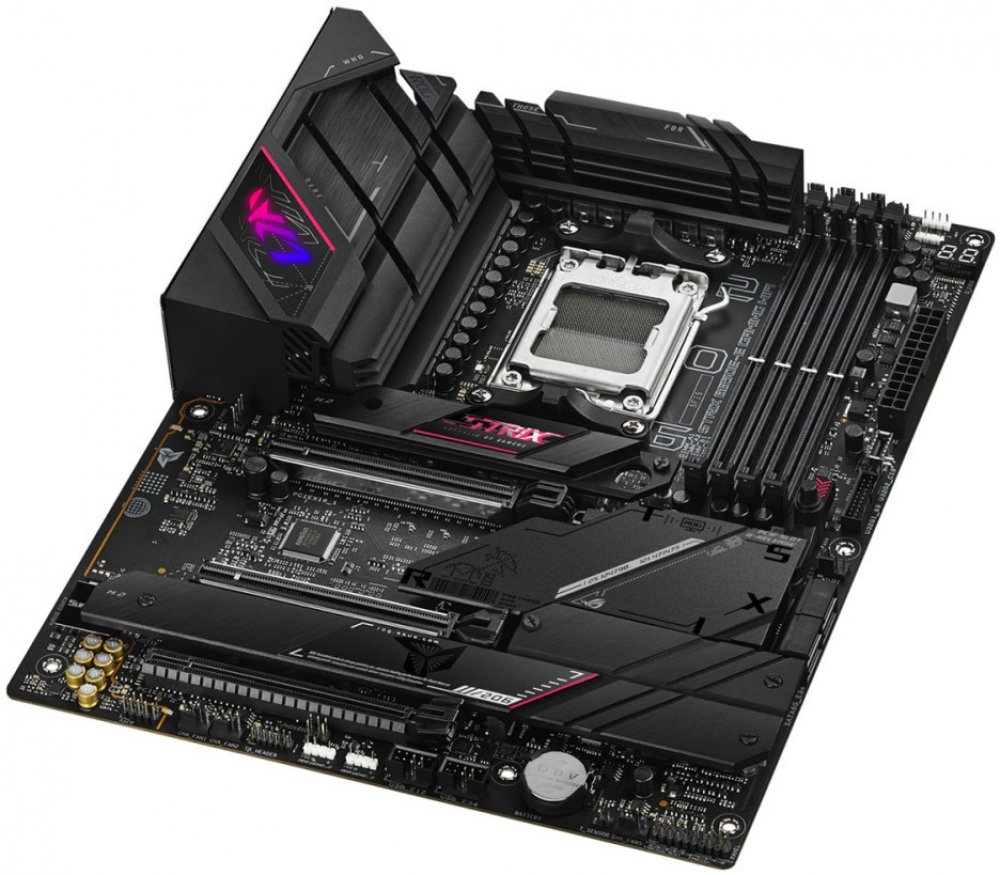

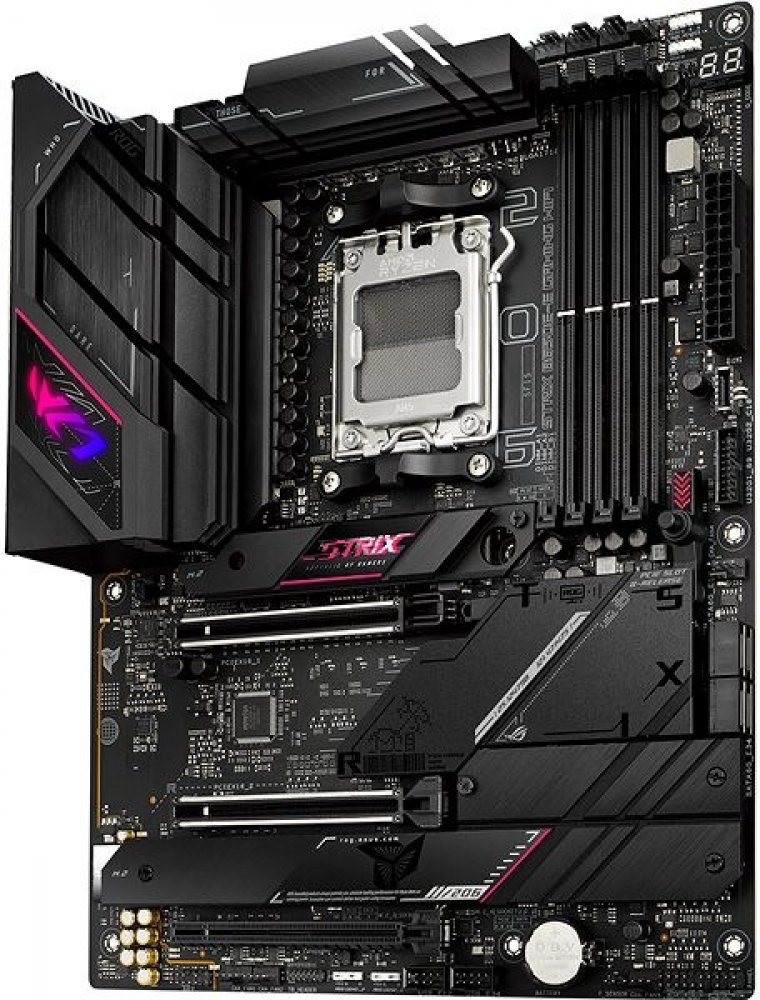

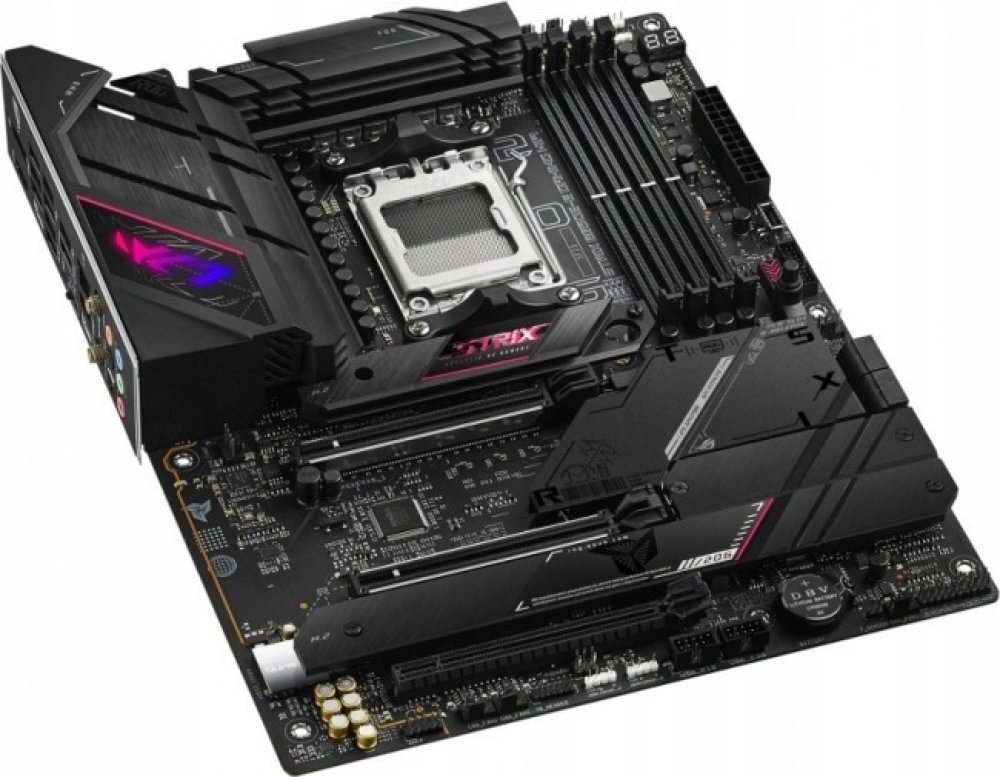

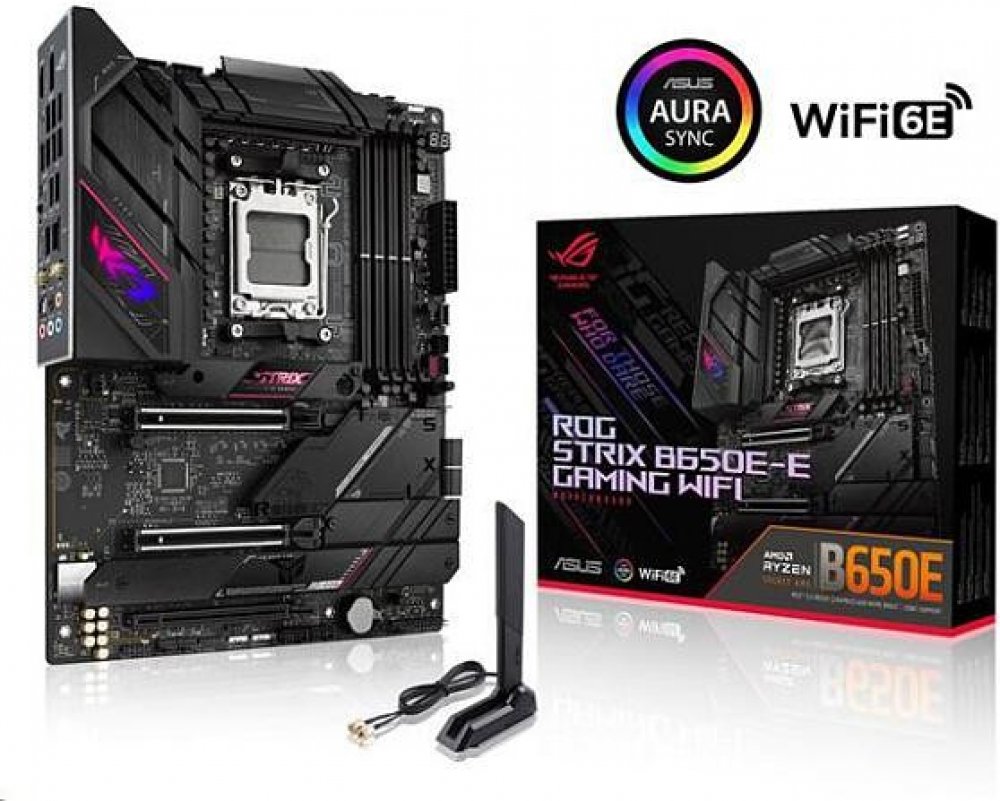

Asus ROG STRIX B650E-E GAMING WIFI 90MB1BB0-M0EAY0

ROG STRIX B650E-E GAMING WIFI
Take your build from B-tier to S with the Strix B650E-E! PCIe 5.0 and DDR5 propel your rig into the future, and innovative Q-Design features make system setup a breeze. All of its perks are backed by a tenacious power solution, hefty heatsinks, and exclusive overclocking technologies to drive you to the next level with Ryzen 7000.
CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
Chipset
AMD B650
Memory
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory*Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO™)OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supportsOn-Die ECC function
Graphics
1 x DisplayPort*1 x HDMI port*** Supports max. 8K@60Hz as specified in DisplayPort 1.4. **Supports max. 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors*2 x PCIe 5.0 x16 slots (supports x16 & x8/x4 modes)AMD B650 Chipset**1 x PCIe 4.0 x16 slot (supports x4 mode)* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)AMD X670 ChipsetM.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet
1 x Intel 2.5Gb EthernetASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency bandBluetooth v5.2* WiFi 6E 6GHz regulatory may vary between countries.
USB
Rear USB (Total 12 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C)4 x USB 2.0 portsFront USB (Total 7 ports)1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input- Supports up to 32-Bit/384 kHz playback"Audio Features - Audio Shielding- Savitech SV3H712 AMP- Rear optical S/PDIF out port - Premium audio capacitors- Audio cover

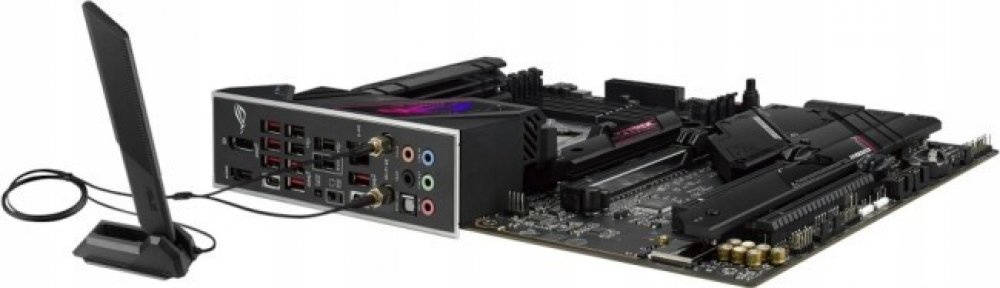

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x Type-C)7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 xUSB Type-C) 4 x USB 2.0 ports1 x DisplayPort1 x HDMI port1 x Wi-Fi Module1 x Intel 2.5Gb Ethernet port5 x Audio jacks*1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS button*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersPower related 1 x 24-pin Main Power connector2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x CPU Over Voltage jumper1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header withChassis intrude function1 x Thermal Sensor header1 x Thunderbolt™ (USB4) header
Special Features
Extreme Engine Digi+- 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch- PCIe Slot Q-Release- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA[white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsinks- M.2 heatsink backplate- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- ProCool- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Aura RGB header- Addressable Gen 2 headers
Software Features
ROG Exclusive Software- GameFirst VI- ROG CPU-Z- Sonic Studio III + Sonic Studio VirtualMixer + Sonic Suite Companion- Sonic Radar III- DTS Sound Unbound - Anti-virus software
ASUS Exclusive Software
Armoury Crate- AIDA64 Extreme (60 days free trial) - Aura Creator- Aura Sync- Fan Xpert 4- Power Saving- Two-Way AI Noise CancellationAI Suite 3 TPU DIGI+ VRM Turbo app PC CleanerMyAsusWinRARUEFI BIOSASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeDynamic OC SwitcherFlexKey
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables2 x SATA 6Gb/s cables Additional Cooling Kit1 x Thermal pad for M.2Miscellaneous1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers1 x ROG Strix thank you card2 x Rubber Packages for M.2Documentation1 x User guide
Operating System
Windows 10 64-bit, Windows 11 64-bit
Form Factor
ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
