Asus PRIME J4005I-C 90MB0W90-M0EAY1

Socket (patice):Integrovaný procesor; Formát:Mini-ITX; Integrovaná grafická karta:Ano (CPU); Chipset:Intel; Technologie paměti RAM:DDR4; Integrovaná LAN karta:1; Podpora RAID:Bez RAID podpory; Rozhraní:HDMI, VGA, USB 2.0, USB 3.1; Další rozhraní:COM port

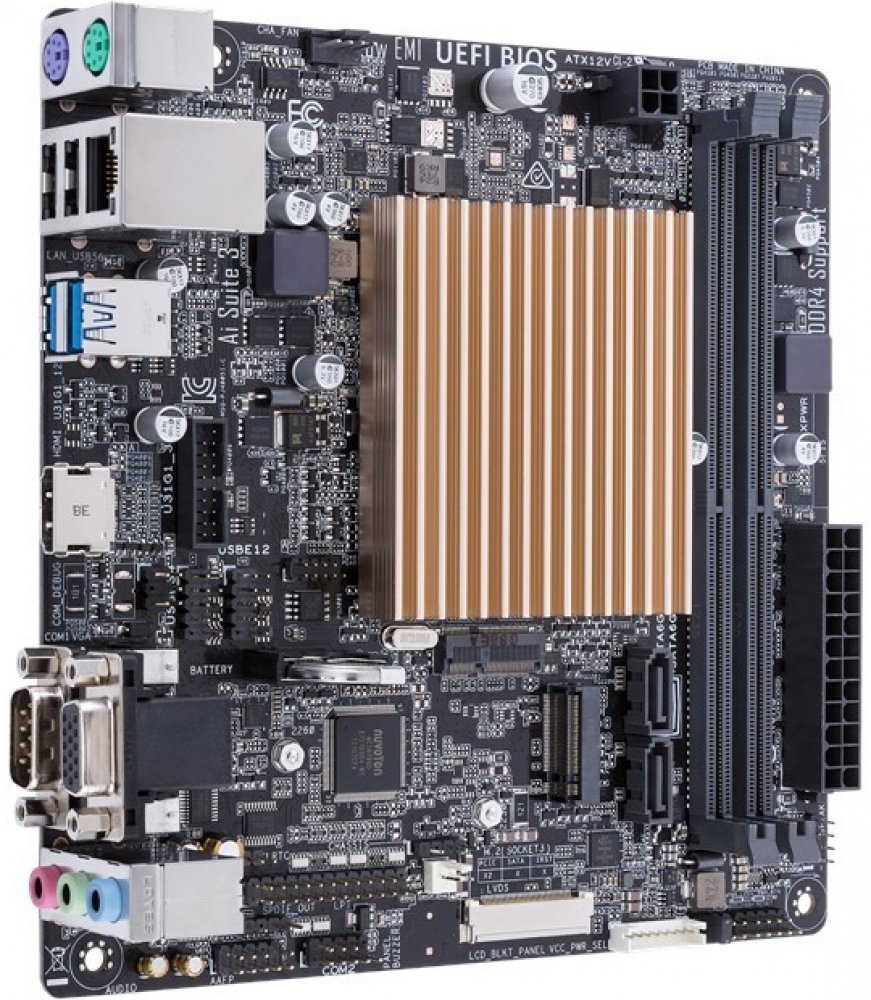

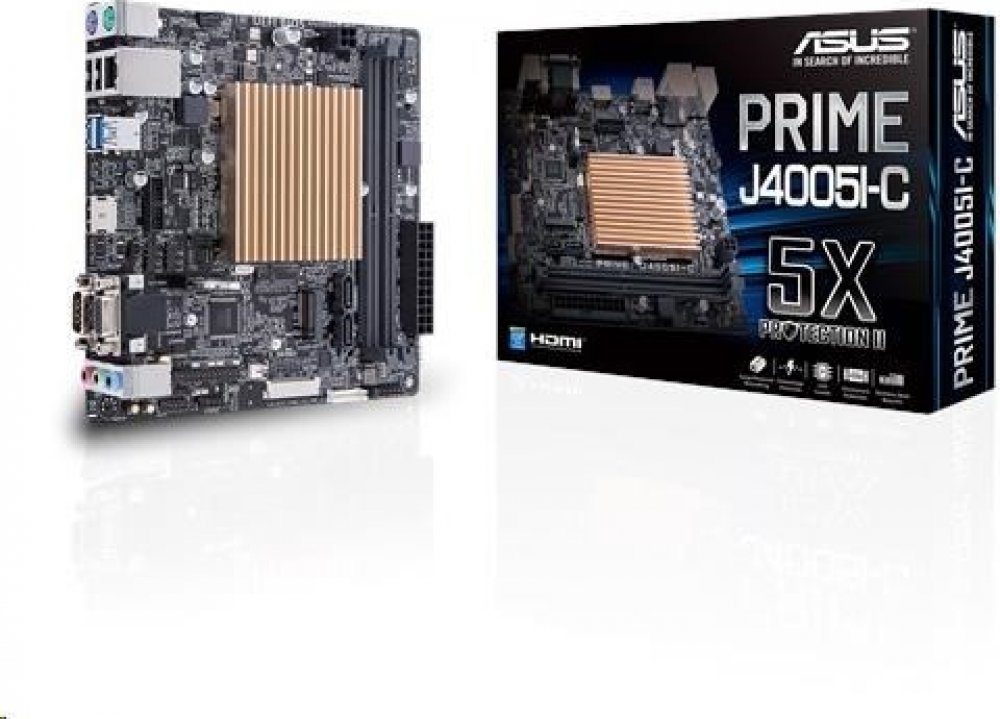

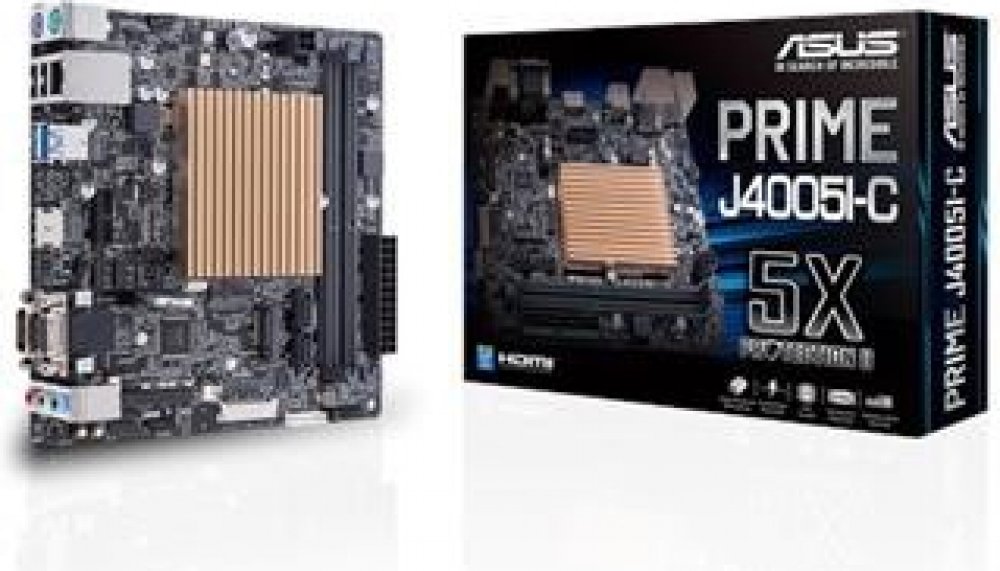

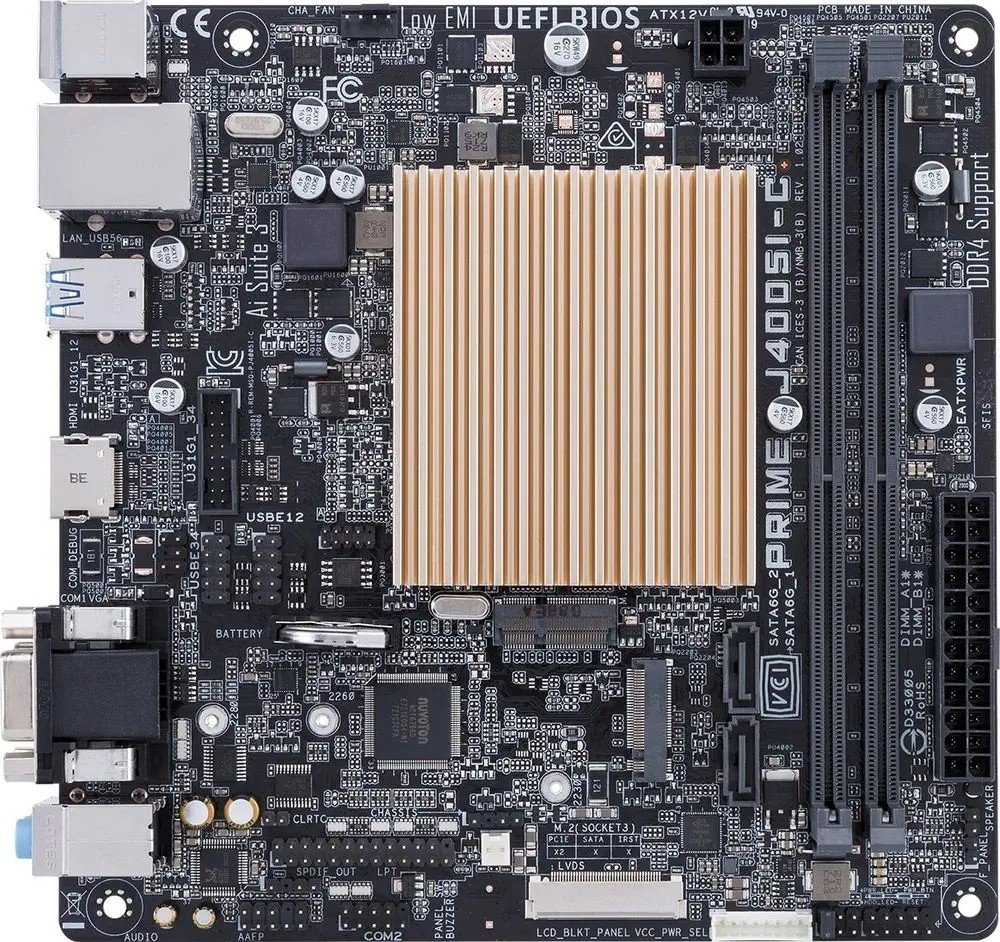

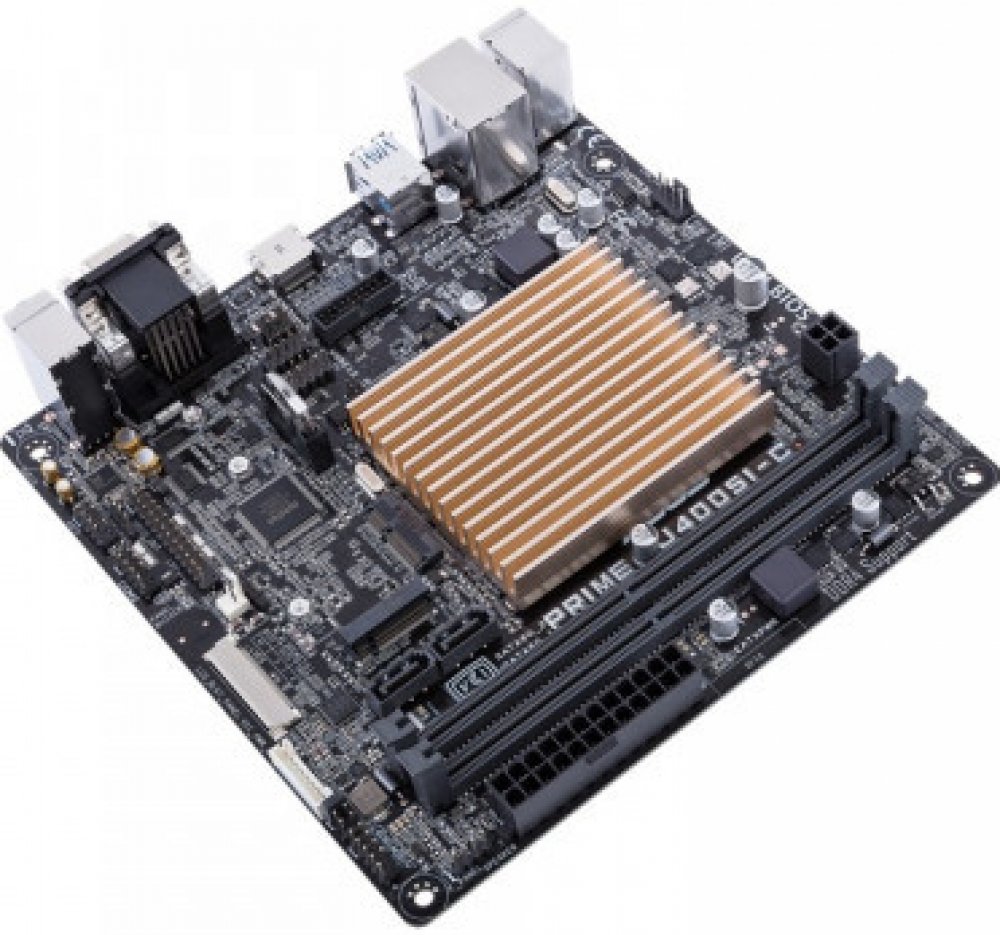

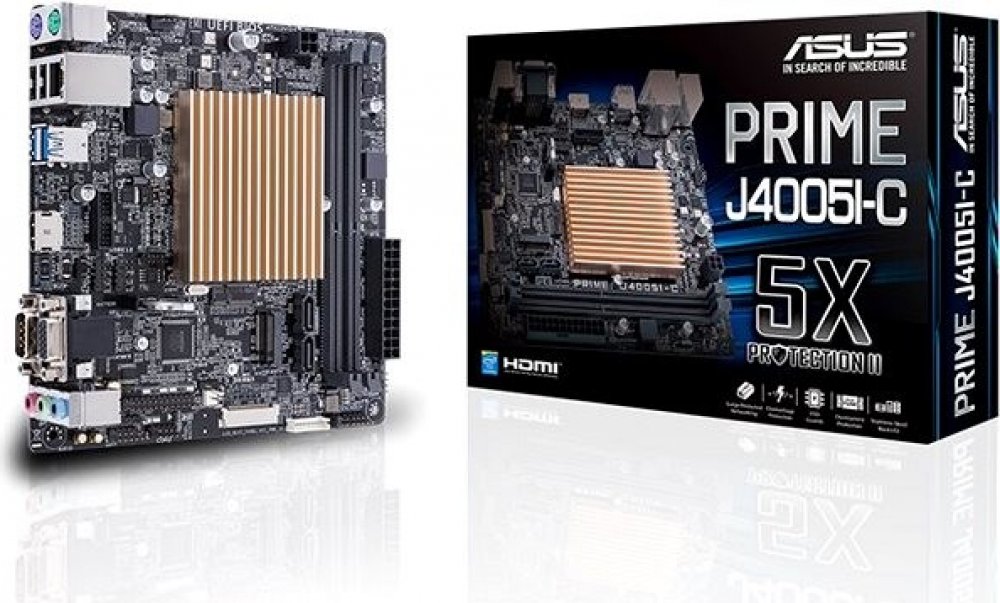

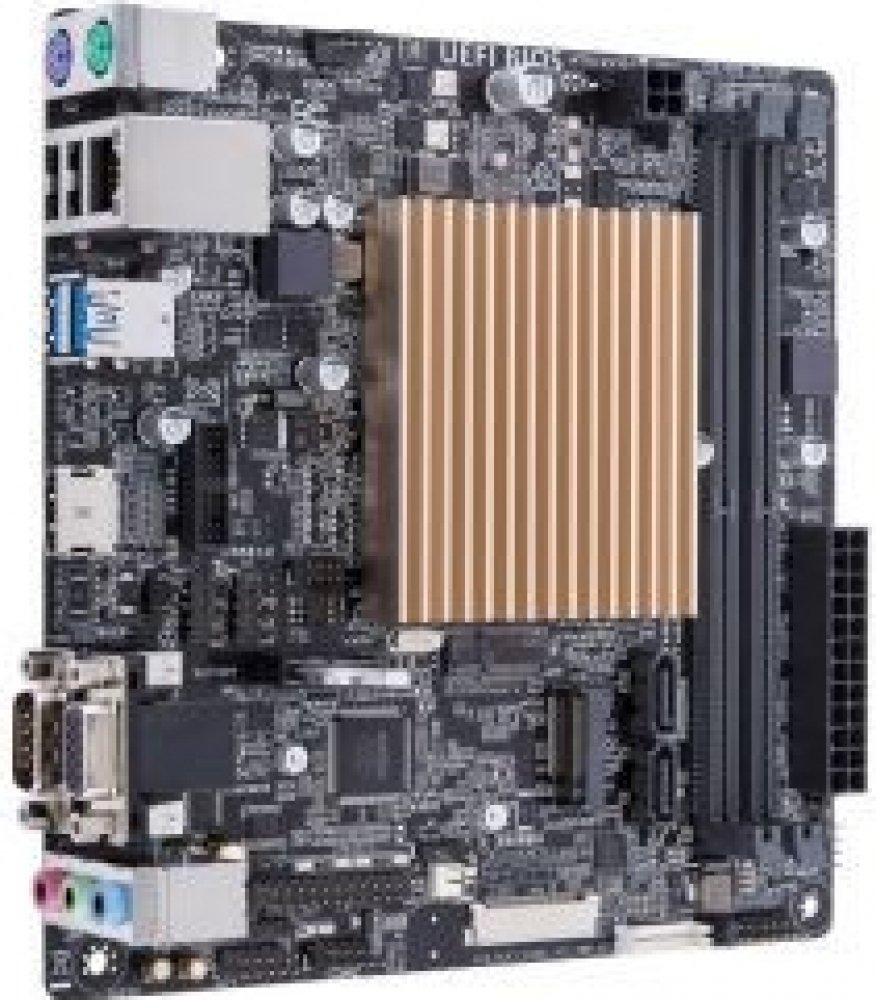

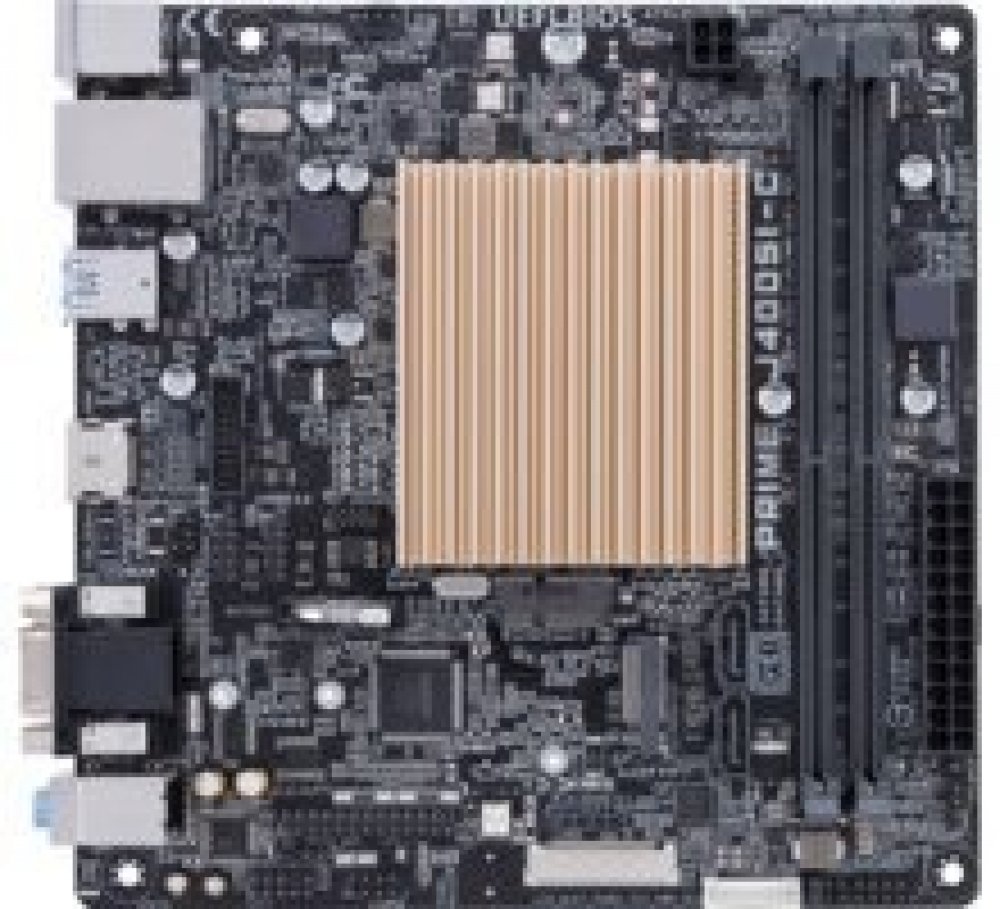

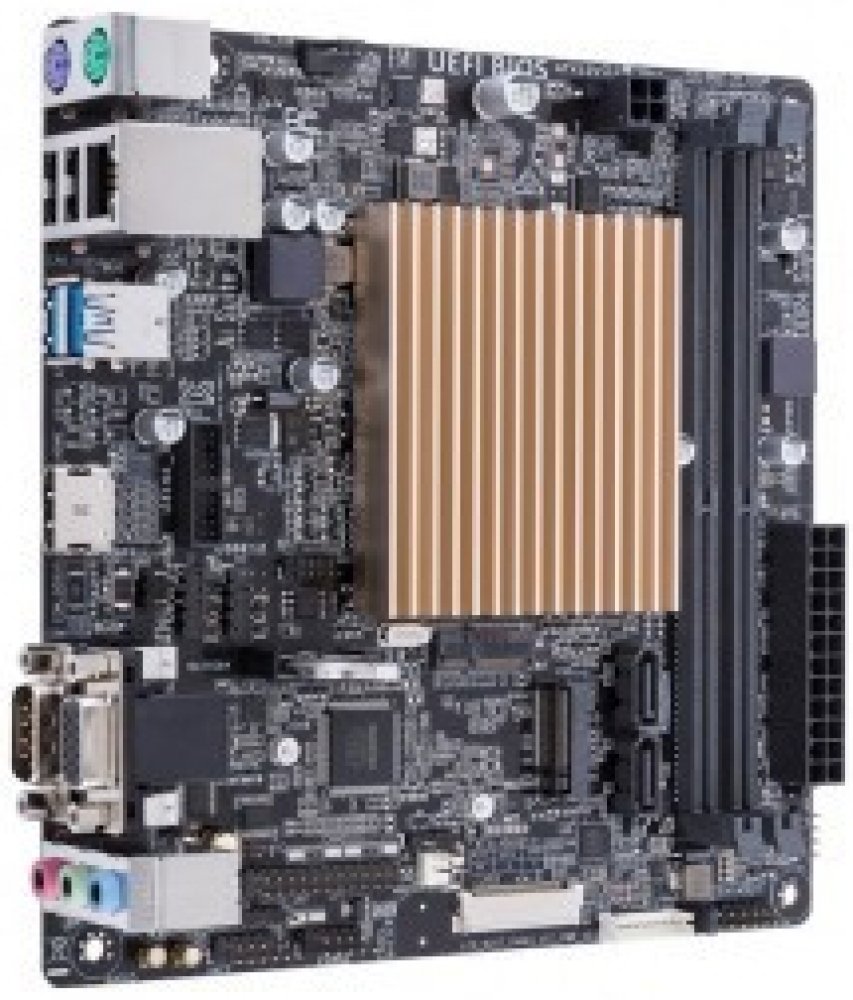

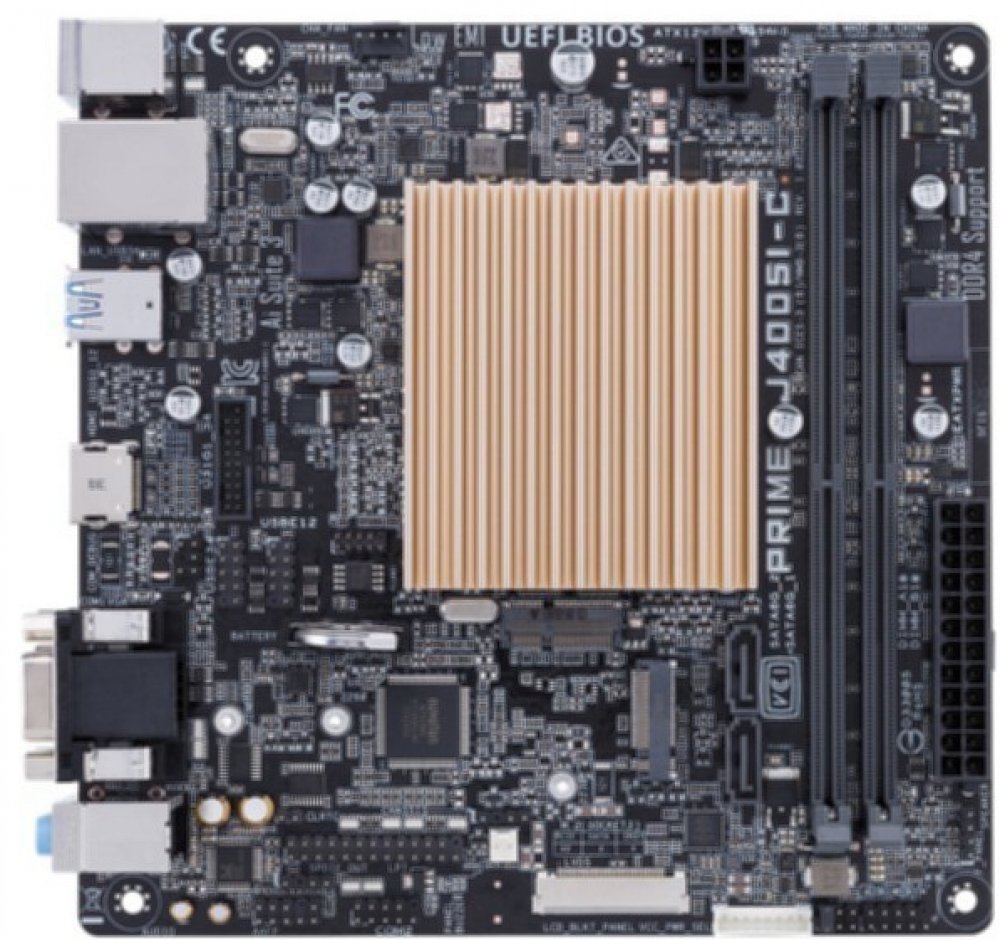

PRIME J4005I-C
Low-power, fan-less motherboard for Intel Celeron SoC J4005 processor, with 2 x DDR4 2400/2133 MHz, 5X Protection II and HDMI/D-Sub/LVDS support.
- Proven quality - 5X Protection. 1000+ compatible devices. 8000+ validation hours.
- AI Suite 3:One-stop access to innovative ASUS features
- New UEFI BIOS and EZ Mode:Friendlier, easier, and more intuitive with helpful info added
TECHNICAL SPECFICATION
Memory2 x U-DIMM, Max. 8GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *1
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).GraphicIntegrated Graphics Processor
Multi-VGA output support : HDMI/RGB/LVDS ports
- Supports HDMI with max. resolution 4096 x 2304 @ 24 Hz
- Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB (for iGPU exclusively)
Supports up to 3 displays simultaneouslyStorage1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (PCIE mode)
2 x SATA 6Gb/s port(s),LANRealtek RTL8111H, 1 x Gigabit LAN Controller(s)AudioRealtek ALC887-VD2 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retaskingUSB Ports Built-in Controller:
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
Built-in Controller:
2 x USB 2.0 port(s) (2 at back panel, )
GL852G USB Hub:
4 x USB port(s) (4 at mid-board)Special FeaturesASUS 5X Protection II:
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
- ASUS ESD Guards - Electrostatic discharge protection
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
ASUS EZ DIY:
- ASUS EZ Flash 3
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-DIMMOperating System SupportWindows 10 64-bit
LinuxBack I/O Ports1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 ,
2 x USB 2.0
1 x COM port(s)
3 x Audio jack(s)Internal I/O Ports2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices support or PCIe/USB mode
1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (PCIe x 2 mode)
1 x LPT header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
1 x Panel off header
1 x LVDS connector(s)
1 x System panel connector
1 x Flat panel display brightness connector
1 x Display panel VCC power selector
1 x Speaker connectorAccessoriesUser's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package BIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information, ErP readyManageabilityWfM 2.0, DMI 2.0, WOL by PME, PXE Support DiscDrivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)Form FactorThin Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )Note*1 We recommend that you use 8GB or less memory modules.
*2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output
