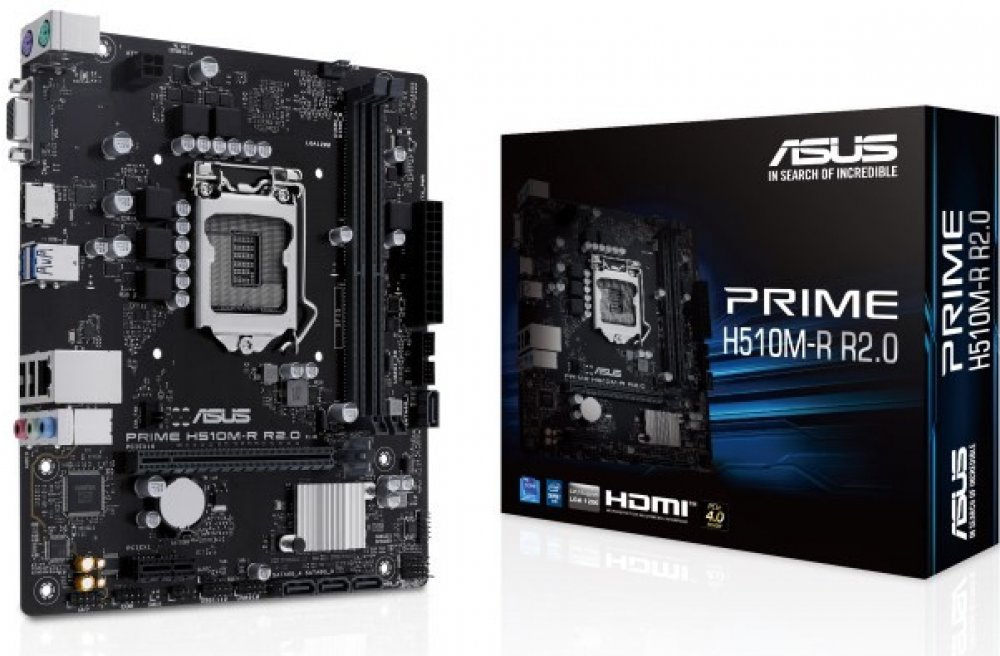

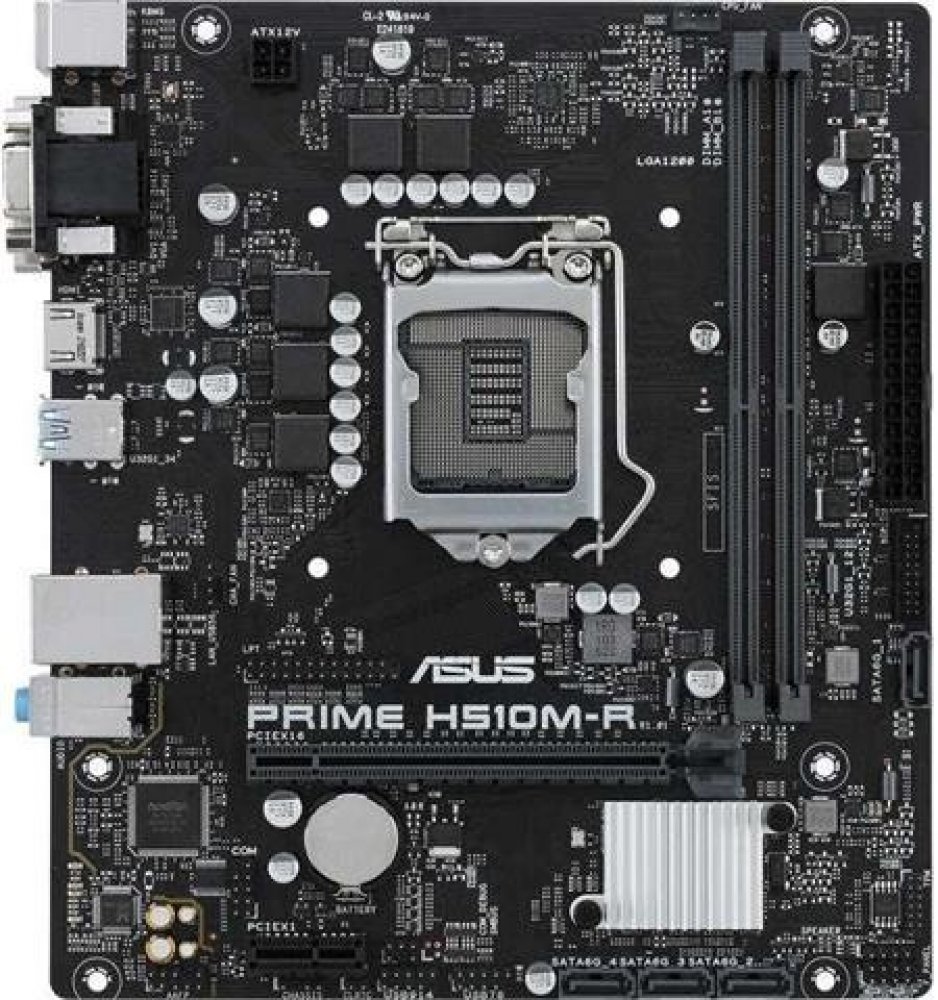

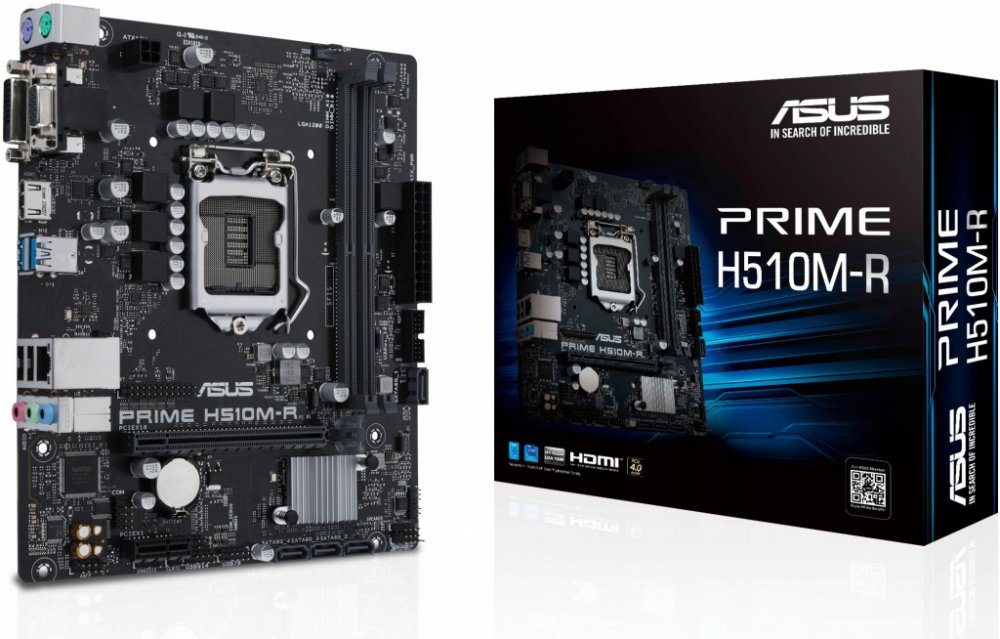

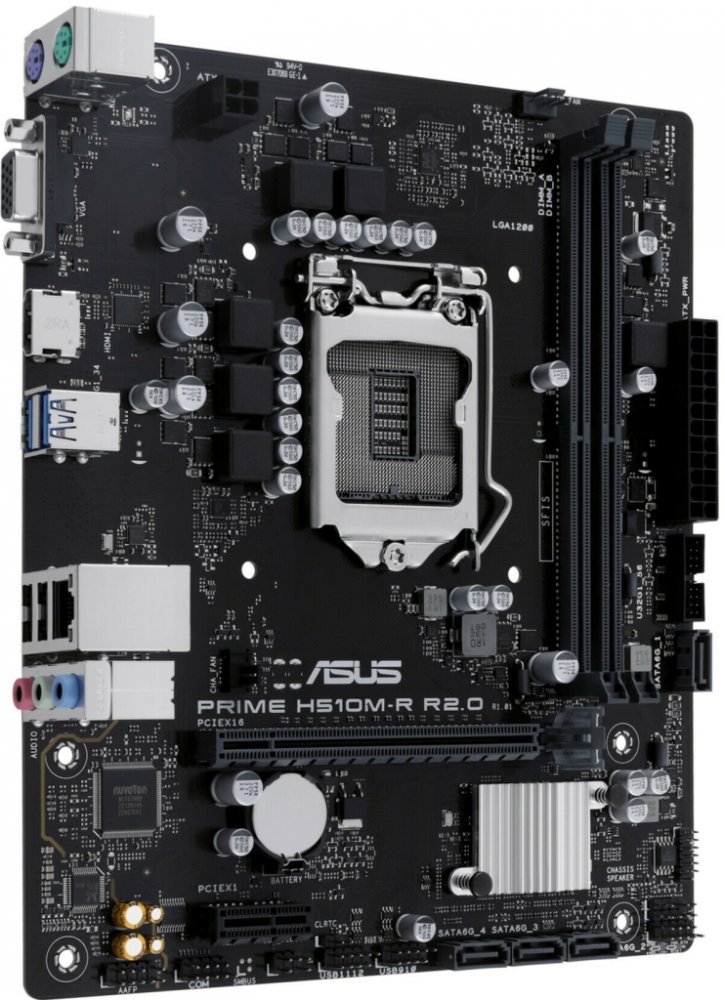

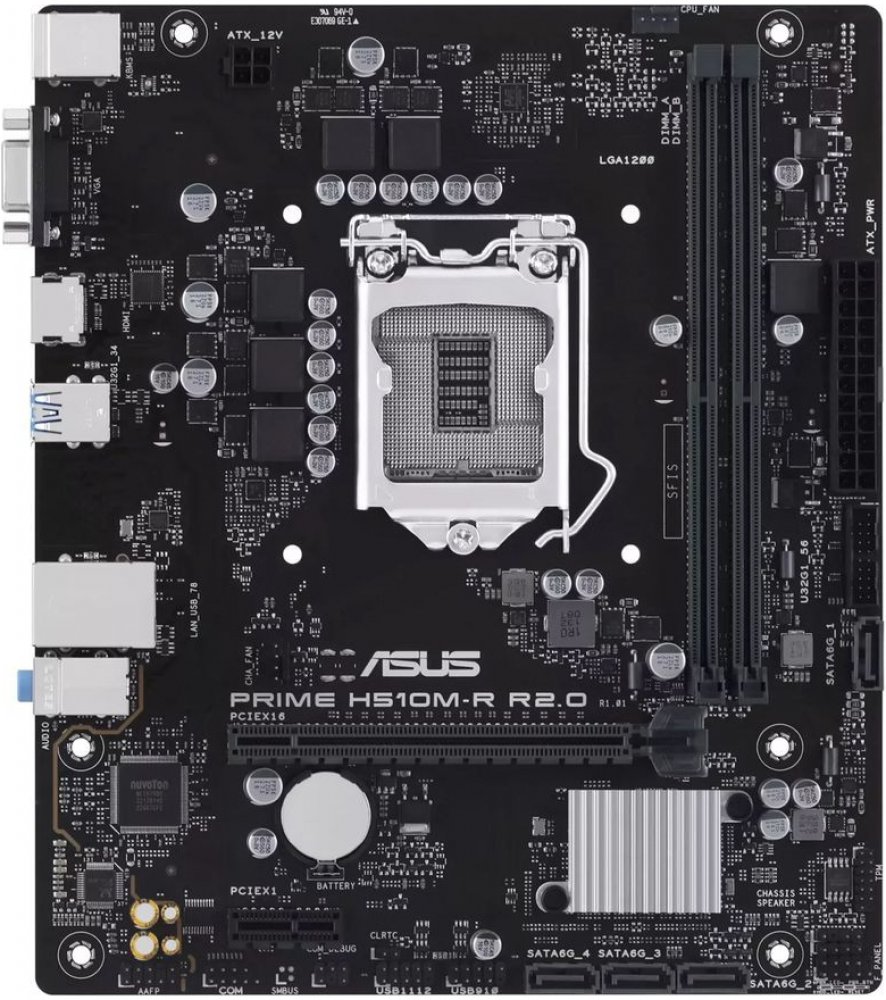

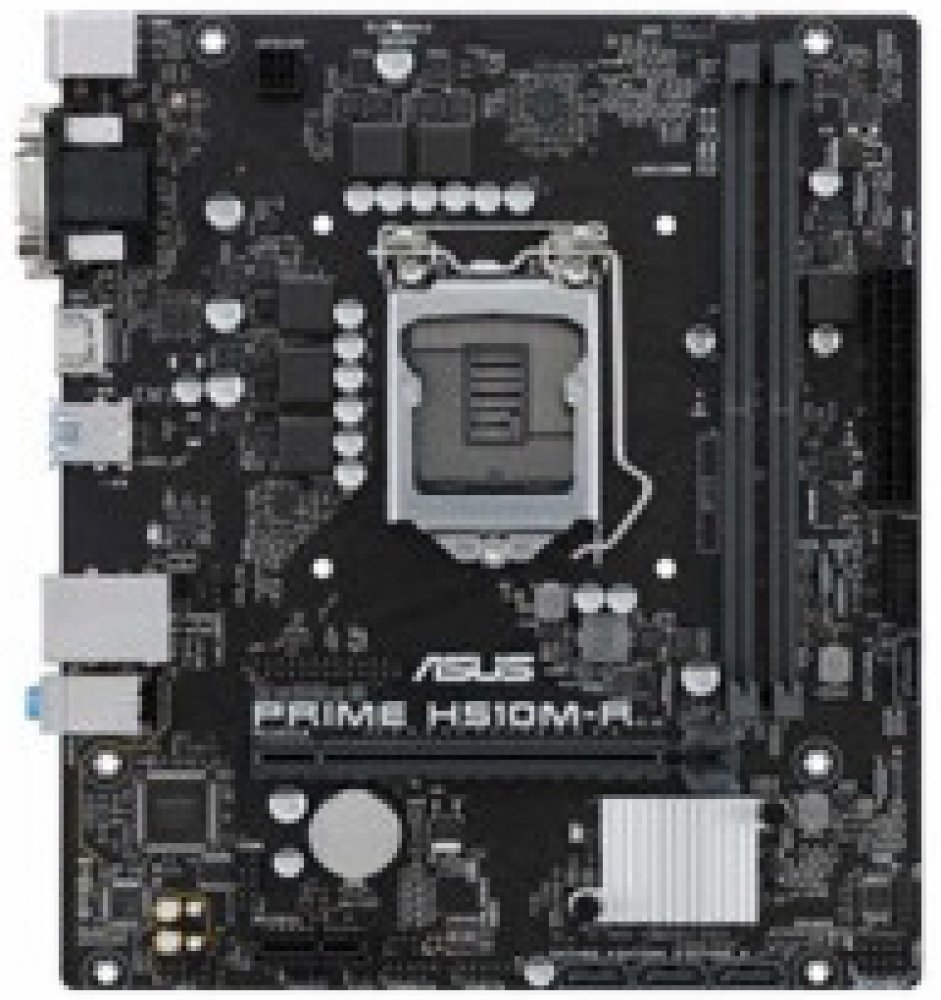

Asus PRIME H510M-R R2.0-SI 90MB1EX0-M0ECY0

ASUS PRIME H510M-R R2.0
\n
\n
\n
\n
\nIntel H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Armoury Crate, 5X PROTECTION III
\n
\n Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Processors
\n Ultrafast connectivity: PCIe 4.0, 1 Gb Ethernet and USB 3.2 Gen 1
\n 5X Protection III: Multiple hardware safeguards for all-round protection
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nCPU
\n
\nIntel Socket LGA1200 for 11th Gen Intel Core™ Processors & 10th Gen Intel Core™, Pentium Gold and Celeron Processors*
\nSupports up to Intel 65W CPU
\nSupports Intel 14 nm CPU
\nSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
\n* Refer to www.asus.com for CPU support list.
\n** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nChipset
\n
\nIntel H470 Chipset
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nMemory
\n
\n2 x DIMM slots, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
\nDual Channel Memory Architecture
\nSupports Intel Extreme Memory Profile (XMP)
\n* 10th Gen Intel Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.
\n* 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.
\n* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nBIOS
\n
\n128 Mb Flash ROM, UEFI AMI BIOS
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nGraphics
\n
\n1 x VGA port
\n1 x HDMI™ port**
\n* Graphics specifications may vary between CPU types.
\n** Only Intel 11th Gen processors support HDMI™ 2.1 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nAudio
\n
\nRealtek 7.1 Surround Sound High Definition Audio CODEC*
\n– Supports: Jack-detection, Multi-streaming, Front Panel Jack retasking
\n– Supports up to 24-Bit/192 kHz playback
\nAudio Features
\n– Audio Shielding
\n– Dedicated audio PCB layers
\n* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nLAN
\n
\n1 x Realtek 1Gb Ethernet
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nSlots
\n
\nIntel 11th& 10thGen Processors*
\n1 x PCIe 4.0/3.0 x16 slot
\n– Intel 11th Gen processors support PCIe 4.0 x16
\n– Intel 10th Gen processors support PCIe 3.0 x16
\nIntel H470 Chipset
\n1 x PCIe 3.0 x1 slot
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nStorage
\n
\nTotal supports 4 x SATA 6Gb/s ports
\nIntel H470 Chipset
\n4 x SATA 6Gb/s ports
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nH/W Monitoring
\n
\nVoltage detection
\nTemperature detection
\nFan speed detection
\nWater cooling flow rate detection
\nFan fail warning
\nFan speed control
\n* Whether the fan speed control function is supported will depend on the fan you install.
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nUSB
\n
\nRear USB (Total 4 ports)
\n2 x USB 3.2 Gen 1 ports (2 x Type-A)
\n2 x USB 2.0 ports (2 x Type-A)
\nFront USB (Total 6 ports)
\n1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
\n2 x USB 2.0 headers support 4 additional USB 2.0 ports
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nConnector
\n
\nFan and Cooling related
\n1 x 4-pin CPU Fan header
\n1 x 4-pin Chassis Fan header
\nPower related
\n1 x 24-pin Main Power connector
\n1 x 4-pin +12V Power connector
\nStorage related
\n4 x SATA 6Gb/s ports
\nUSB
\n1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
\n2 x USB 2.0 headers support 4 additional USB 2.0 ports
\nMiscellaneous
\n1 x Clear CMOS header
\n1 x Chassis Intrusion header
\n1 x COM Port header
\n1 x Front Panel Audio header (AAFP)
\n1 x Speaker header
\n1 x SPI TPM header (14-1pin)
\n1 x 10-1 pin System Panel header
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nRear Panel I/O
\n
\n2 x USB 3.2 Gen 1 ports (2 x Type-A)
\n2 x USB 2.0 ports (2 x Type-A)
\n1 x VGA port
\n1 x HDMI™ port
\n1 x Realtek 1Gb Ethernet port
\n3 x Audio jacks
\n1 x PS/2 Keyboard (purple) port
\n1 x PS/2 Mouse (green) port
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nSpecial Features
\n
\nASUS 5X PROTECTION III
\n– DIGI+ VRM
\n– LANGuard
\n– Overvoltage Protection
\n– SafeSlot Core
\n– Stainless-Steel Back I/O
\nASUS Q-Design
\n– Q-DIMM
\n– Q-LED Core
\n– Q-Slot
\nASUS Thermal Solution
\n– Aluminum heatsink design
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nSoftware Features
\n
\nASUS Exclusive Software
\nArmoury Crate
\nAI Suite 3
\n– Performance And Power Saving Utility
\nTurboV EVO
\nEPU
\nDIGI+ VRM
\n– EZ update
\nASUS CPU-Z
\nNorton 360 Deluxe (60 Days Free Trial)
\nWinRAR
\nUEFI BIOS
\nASUS EZ DIY
\n– ASUS CrashFree BIOS 3
\n– ASUS EZ Flash 3
\n– ASUS UEFI BIOS EZ Mode
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nManageability
\n
\nWOL by PME, PXE
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nOperating System
\n
\nWindows 11, Windows 10 64-bit
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nAccessories
\n
\nCables
\n2 x SATA 6Gb/s cables
\nMiscellaneous
\n1 x I/O Shield
\nDocumentation
\n1 x User guide
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\n
\nForm Factor
\nmATX Form Factor; 21.8 cm x 18.8 cm
