ASRock Phantom Gaming 1300W PG-1300G

Vstupní frekvence (Hz): 50 - 60
Vstupní napětí (V): 100 - 240
Intenzita proudu (amper): 15 / 8
Přehřátí (OTP): ano
Proudové špičky (OCP): ano
Přetížení (OPP): ano
Zkrat (SCP): ano
Přetížení (OVP): ano
Podpětí (UVP): ano
Ventilátor (počet): 1
Způsob chlazení: aktivní
Průměr větráku (mm): 135
Síťový vypínač: ano
Životnost / MTBF (hod): 100000
Vedení kabelů: plně modulární
ATX-Mainboard: 1x 24pin
EPS12V: 2x 4+4pin
PCIe: 6x 6+2pin
16-Pin (12V-2×6, PCIe 5.1): 2x
Peripheral P4: 3x 4pin
S-ATA: 9x
Výkon (Watt): 1300
Nejvyšší výkon (Watt): 2860
Form faktor: ATX
Verze ATX: 3.1
Barva: černá
Šířka (mm): 180
Výška (mm): 86
Hloubka (mm): 150

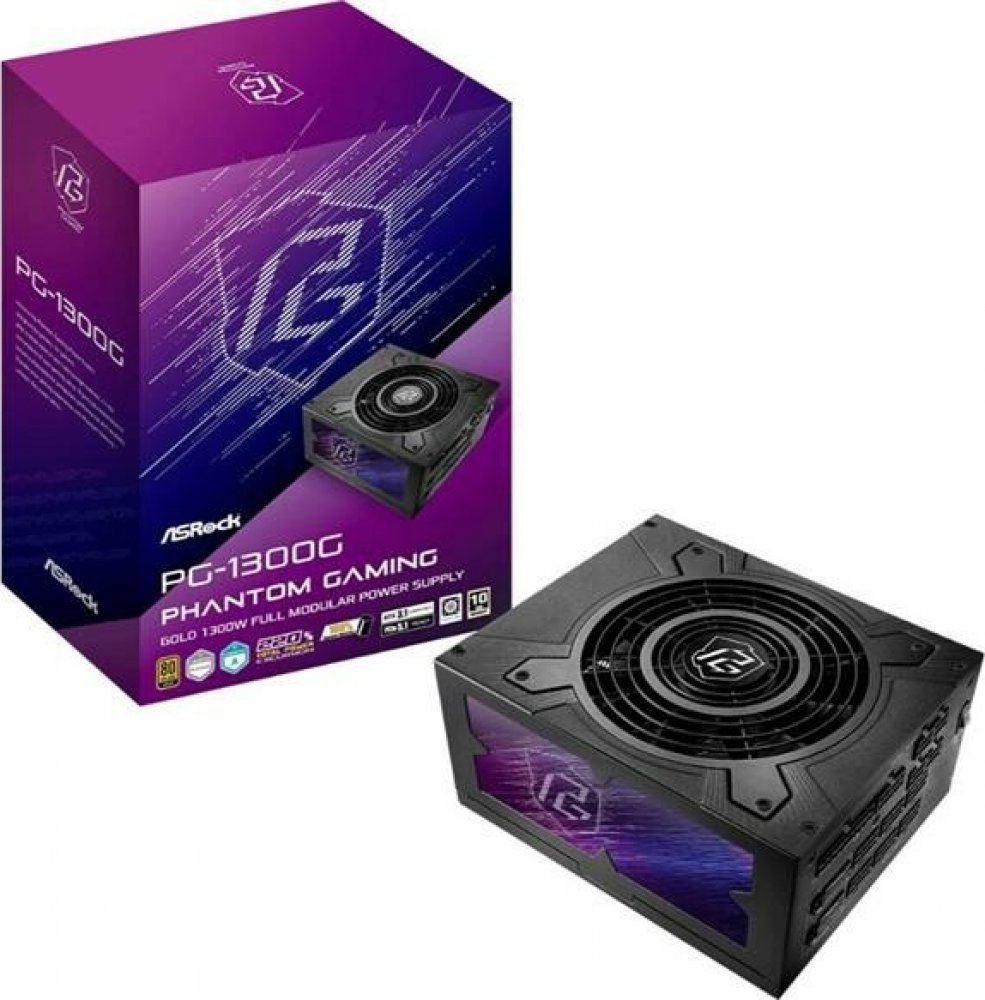

ASRock Phantom Gaming PG-1300G – PC Power Supply
High power reserves and modern standards are essential for today’s high-end systems. This power supply delivers 1,300 W and is compatible with ATX 3.1 and PCIe 5.1. It is ideal for powerful graphics cards and processors with high peak loads.
Designed for current hardware generations
The power supply can handle short power peaks of up to 220% and reacts quickly to load changes. The native 12V-2x6 connector supports modern graphics cards without the need for adapters. The fully modular cable design helps to build a clean and well-organised system.
Controlled cooling and stable voltages
A 135 mm FDB fan works depending on load and stays switched off at low to medium load. The integrated 5V BOOST mode stabilises the 5 V rail in case of voltage drops. Japanese capacitors are designed for continuous operation at up to 105 °C.
Features:
1,300 W output power for high-performance PC configurations
80 PLUS Gold efficiency to reduce energy loss
ATX 3.1 and PCIe 5.1 support for modern platforms
Fully modular cable management for a tidy system build
Native 12V-2x6 connector for modern graphics cards

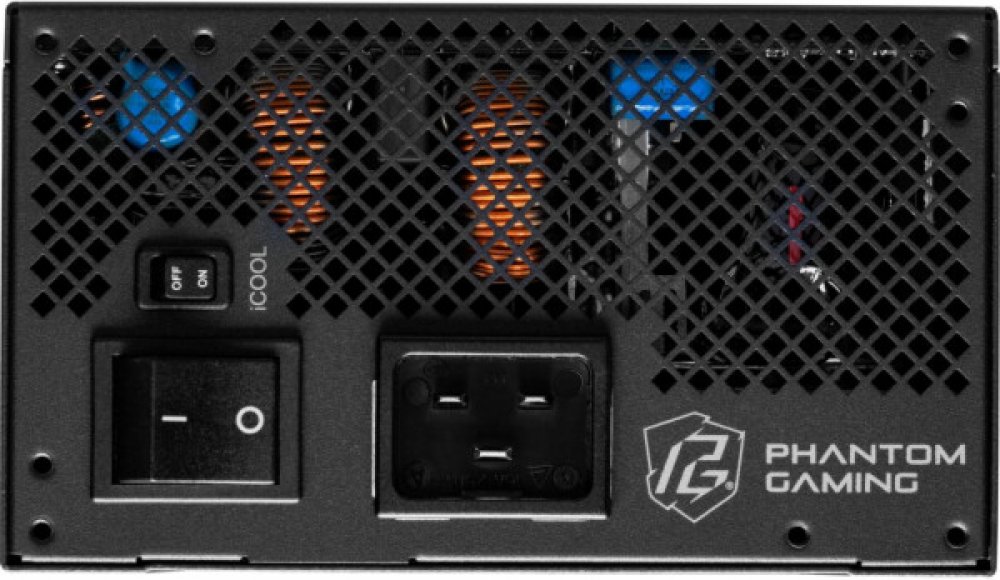

iCool fan control with semi-passive operation
135 mm axial fan with FDB bearing for even cooling
5V BOOST mode to stabilise output voltage
Japanese capacitors for operation at up to 105 °C
Connections:
1× 24-pin ATX mainboard connector
2× 8-pin CPU (4+4-pin)
2× 12V-2x6 (PCIe 5.1)
6× PCIe 6+2-pin
9× SATA
3× Peripheral 4-pin (Molex)
