Alpine SWR-8D2

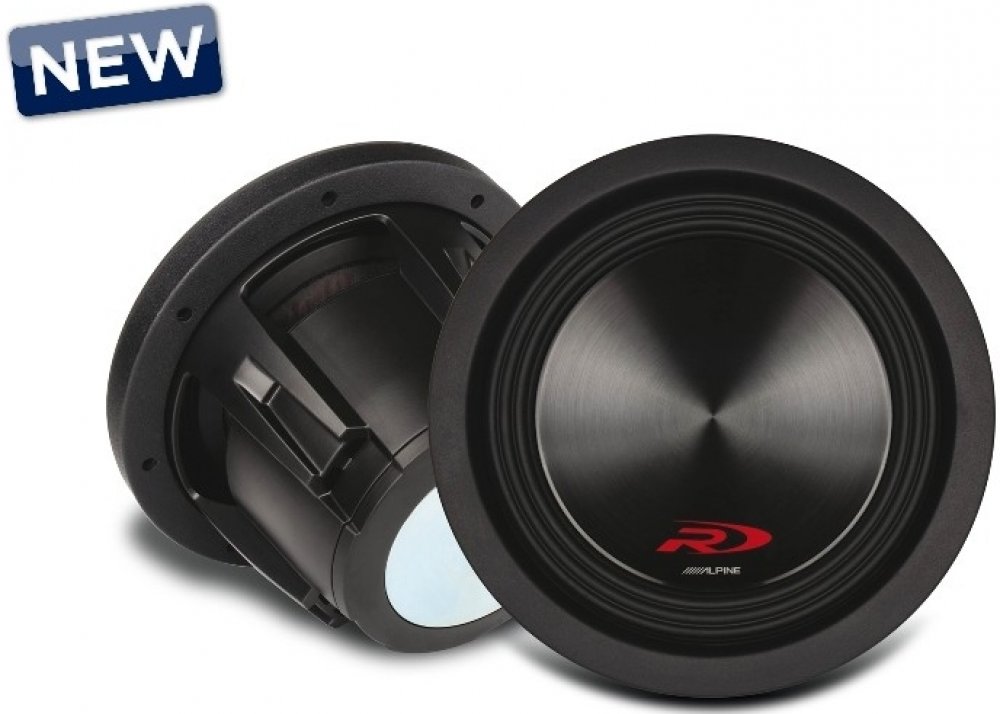

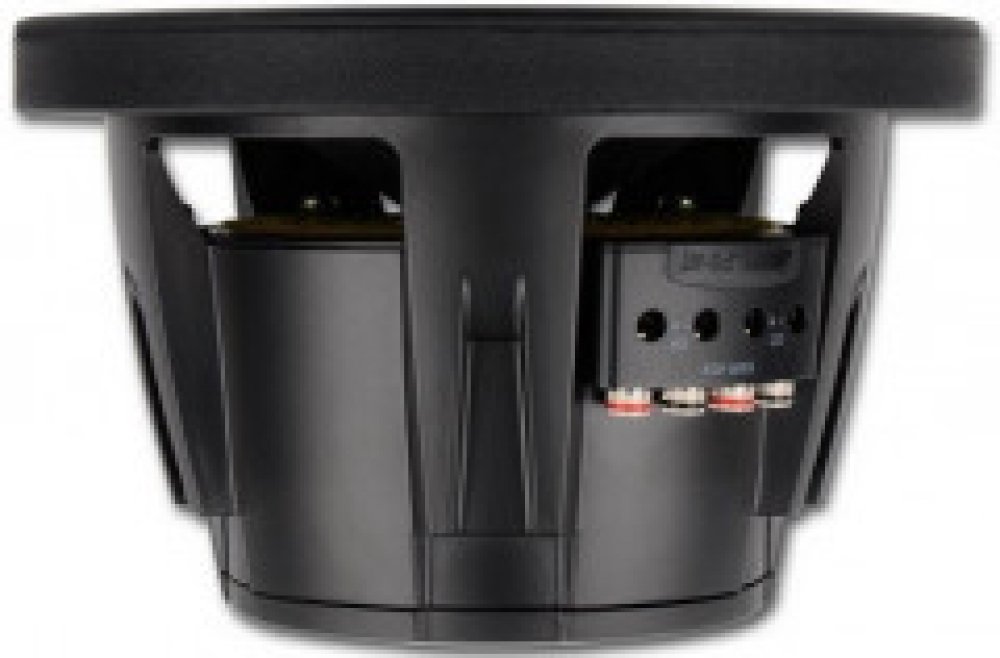

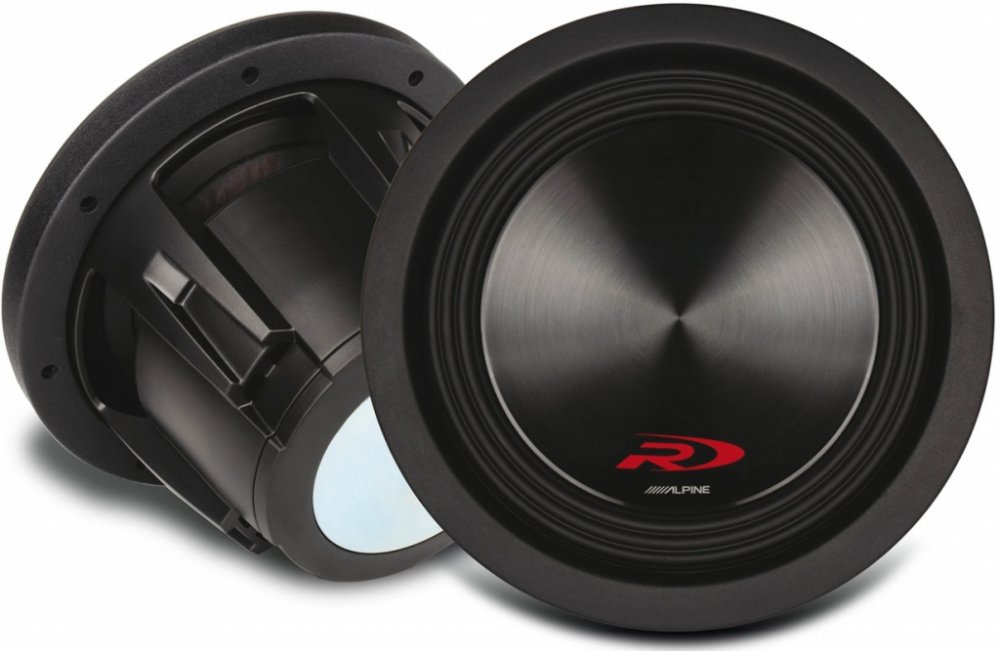

Alpine SWR-8D2 Subwoofer (20cm)
SWR-8D2 - 8" (20cm) Type-R Subwoofers (2? + 2?)
Táto prepracovaná, už piata generácia subwooferov Type-R sa vyznačuje niekoľkými pokročilými vylepšeniami pre dosiahnutie ešte čistejších a hlbších basov, rýchlejšej a presnejšej kontroly a samozrejme tiež vyššieho výkonu než kedykoľvek predtým.
FEATURES
Diaphram
Material:Reinforced Parabolic Cone Structure with Poly-Mica Dust Cap & Pulp-Kevlar Cone Body
Design: 2-Piece Structural Parabolic
Surround
Material: Injected Molded Santoprene®
Design: High Amplitude Multi-Roll
Spider
Material: Nomex®
Design: Progressive Conex® Spider with Reinforced Layer Tinsel Leads
Voice Coil
Material: 38mm Voice Coil with High-Temp
Design: 4-Layer DVC Winding on Spiral Cut
Motor Structure
Pole Geometry: Extended Pole Geometry
Configuration: Compound Radius Curve
Frame
Material: Cast Aluminum
Design: Perimeter Vented Heat Transfer
Terminals
Layout: One Side
Design: Heavy Duty 10mm? Push with Housing, Banana Plug Jumper
Tinsel Leads
Design: Reinforced Layer Spider Integration (Patent #6,810,988)
Gasket
Design: Concealed Mount Gasket (Integrated Grille System Ready, US Pat #7,760,900)
SPECIFICATIONS
Power Handling
RMS Power Handling: 350 Watts
Peak Power Handling: 1000 Watts
Dimensions
Mounting Depth: 115 mm
Mounting Diameter: 176 mm
Displacement: 1.4l
Added Volume: 1.0l
General
Nominal Impedance: 2 Ohm + 2 Ohm
Frequency Response: 30-200 Hz
