Adastra Z5M
Adastra

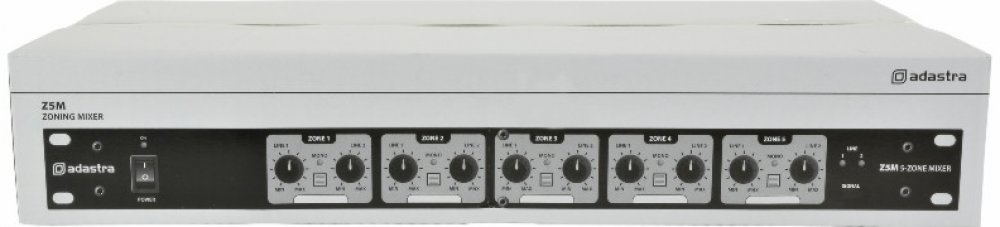

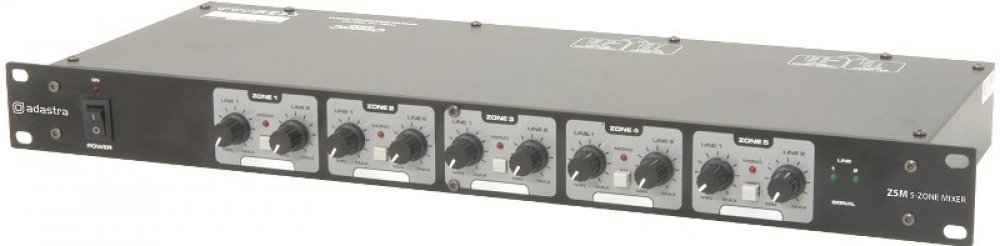

2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.
Power supply: 115/230Vac 50/60Hz (IEC)
Inputs: Line 1 L+R, Line 2 L+R, balanced XLRF
Outputs: Zone 1 to 5 L+R, balanced XLRM
Input impedance...
2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.
Power supply: 115/230Vac 50/60Hz (IEC)
Inputs: Line 1 L+R, Line 2 L+R, balanced XLRF
Outputs: Zone 1 to 5 L+R, balanced XLRM
Input impedance: 40k Ohms
Output impedance: 220 Ohms
Frequency response: 20Hz - 25kHz, +0/-1dB
Signal to noise ratio: >100dB
THD:
Více informací o produktu
Power supply: 115/230Vac 50/60Hz (IEC)
Inputs: Line 1 L+R, Line 2 L+R, balanced XLRF
Outputs: Zone 1 to 5 L+R, balanced XLRM
Input impedance: 40k Ohms
Output impedance: 220 Ohms
Frequency response: 20Hz - 25kHz, +0/-1dB
Signal to noise ratio: >100dB
THD:
